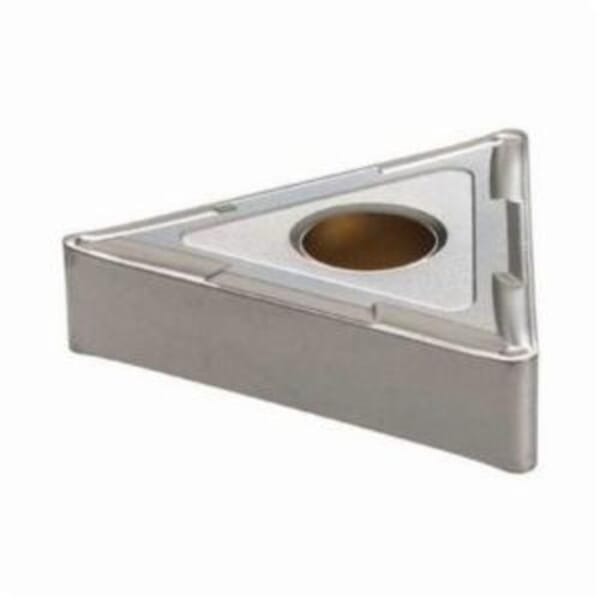

Name: Seco 02959836 Turning Insert, ANSI Code: TNMG431-MF2 TP2501, TNMG Insert, Material Grade: P, 220404 Insert, Triangular Shape, 22 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501
Brand: Seco Tools
SKU: Seco_018667
Availability: OutOfStock

Seco Tools

Seco 02959836 Turning Insert, ANSI Code: TNMG431-MF2 TP2501, TNMG Insert, Material Grade: P, 220404 Insert, Triangular Shape, 22 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 02959836 Turning Insert, ANSI Code: TNMG431-MF2 TP2501, TNMG Insert, Material Grade: P, 220404 Insert, Triangular Shape, 22 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturers Grade: TP2501

ManufacturerSeco

Part #288515079

MFG #02959836

Seco Turning Insert, TNMG Insert, 220404 Insert, Triangular Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 mm Length, 22 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.4 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturers Grade: TP2501, ANSI Code: TNMG431-MF2 TP2501, ISO Code: TNMG220404-MF2 TP2501, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, TiCN/Al2O3, Material Grade: P, For Use On: Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: TNMG431-MF2 TP2501
Chipbreaker: MF2
Corner Radius: 0.4 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated, TiCN/Al2O3
For Use On: Steel
Hole Diameter: 5.15 mm
Included Angle: 60 deg
Inscribed Circle: 12.7 mm
Insert Size: 220404
Insert Style: TNMG
ISO Code: TNMG220404-MF2 TP2501
Length: 22 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TP2501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 5.25 mm
Rake: Negative/Positive
Relief Angle: 0 deg
Seat Size: 22
Shape: Triangular
Thickness: 4.76 mm
: The Turning insert TNMG220404-MF2 TP2501 features a negative type design with a clearance angle major of 0 degrees. It is made from Carbide CVD grade TP2501 and has six cutting edges. With a corner radius of 0.4 mm and a cutting edge effective length of 21 mm, the insert is neutral handed. The insert is primarily intended for steel and is partially applicable for stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link

: Manufacturer Name: Seco Tools
ANSI Code: TNMG431-MF2 TP2501
Chipbreaker: MF2
Corner Radius: 0.4 mm
Country of Origin: SE
Cutting Direction: Neutral
Finish: CVD-TiCN+Al2O3 Coated, TiCN/Al2O3
For Use On: Steel
Hole Diameter: 5.15 mm
Included Angle: 60 deg
Inscribed Circle: 12.7 mm
Insert Size: 220404
Insert Style: TNMG
ISO Code: TNMG220404-MF2 TP2501
Length: 22 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: TP2501
Material: Carbide
Material Grade: P
Maximum Depth of Cut: 5.25 mm
Rake: Negative/Positive
Relief Angle: 0 deg
Seat Size: 22
Shape: Triangular
Thickness: 4.76 mm
: The Turning insert TNMG220404-MF2 TP2501 features a negative type design with a clearance angle major of 0 degrees. It is made from Carbide CVD grade TP2501 and has six cutting edges. With a corner radius of 0.4 mm and a cutting edge effective length of 21 mm, the insert is neutral handed. The insert is primarily intended for steel and is partially applicable for stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link
