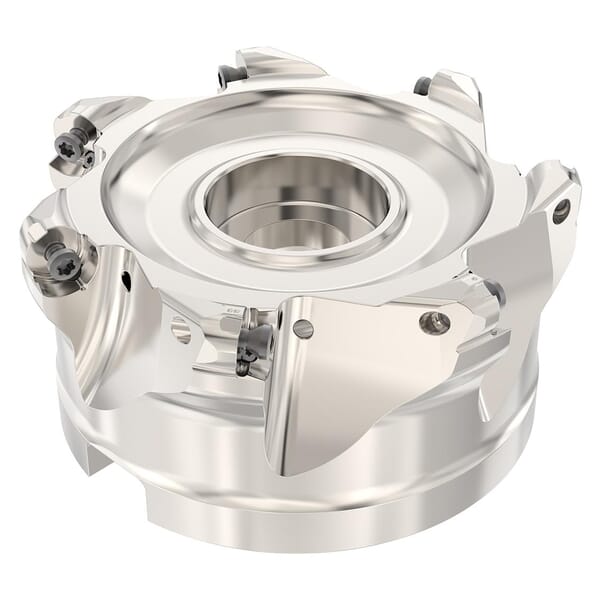

Name: Seco 02949649 Single Sided Insert Indexable Copy Mill With Through Coolant Supply, ANSI Code: R220.29I-04.00-06-7A, R220.29 Toolholder
Brand: Seco Tools
SKU: SECO_TOOLS_Q1_18_106280
Availability: OutOfStock

Seco Tools

Seco 02949649 Single Sided Insert Indexable Copy Mill With Through Coolant Supply, ANSI Code: R220.29I-04.00-06-7A, R220.29 Toolholder

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco 02949649 Single Sided Insert Indexable Copy Mill With Through Coolant Supply, ANSI Code: R220.29I-04.00-06-7A, R220.29 Toolholder

ManufacturerSeco

Part #288513724

MFG #02949649

Seco Indexable Copy Mill, Single Sided Insert, 101.6 mm Cutting Dia, 50.8 mm Overall Length, 6 mm Maximum Depth of Cut, 7 Inserts, Insert Compatibility: RP..12, 90 mm Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: R220.29I-04.00-06-7A, ISO Code: R220.29I-04.00-06.7A, R220.29 Toolholder

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: R220.29I-04.00-06-7A

Country of Origin: FR

Cutting Diameter: 101.6 mm

Cutting Direction: Right Hand

Insert Compatibility: RP..12

ISO Code: R220.29I-04.00-06.7A

Manufacturer Name: Seco Tools

Maximum Depth of Cut: 6 mm

Number of Inserts: 7

Overall Length: 50.8 mm

Shank Diameter: 90 mm

Shank Type: Arbor

Toolholder Type: R220.29

Type: Single Sided Insert

Our comprehensive range of round insert cutters, R217/220.29, is ideal for semi-finishing and roughing in all copy milling applications and materials

The Round insert milling cutter R220.29I-04.00-06.7A features an arbor shank type and a maximum cutting diameter of 4 inch. With a maximum depth of cut in the feed direction side of 0.236 inch, it provides precise cutting capacity. The cutter has seven peripheral effective cutting edges and a connection bore diameter of 1.5 inch. It is compatible with workpiece side connections RPHT1204, RPKT1204, RPHW1204, and RPKW1204. The functional length of the milling cutter is 2 inch. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Manufacturer Name: Seco Tools

ANSI Code: R220.29I-04.00-06-7A

Country of Origin: FR

Cutting Diameter: 101.6 mm

Cutting Direction: Right Hand

Insert Compatibility: RP..12

ISO Code: R220.29I-04.00-06.7A

Manufacturer Name: Seco Tools

Maximum Depth of Cut: 6 mm

Number of Inserts: 7

Overall Length: 50.8 mm

Shank Diameter: 90 mm

Shank Type: Arbor

Toolholder Type: R220.29

Type: Single Sided Insert

Our comprehensive range of round insert cutters, R217/220.29, is ideal for semi-finishing and roughing in all copy milling applications and materials

The Round insert milling cutter R220.29I-04.00-06.7A features an arbor shank type and a maximum cutting diameter of 4 inch. With a maximum depth of cut in the feed direction side of 0.236 inch, it provides precise cutting capacity. The cutter has seven peripheral effective cutting edges and a connection bore diameter of 1.5 inch. It is compatible with workpiece side connections RPHT1204, RPKT1204, RPHW1204, and RPKW1204. The functional length of the milling cutter is 2 inch. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
