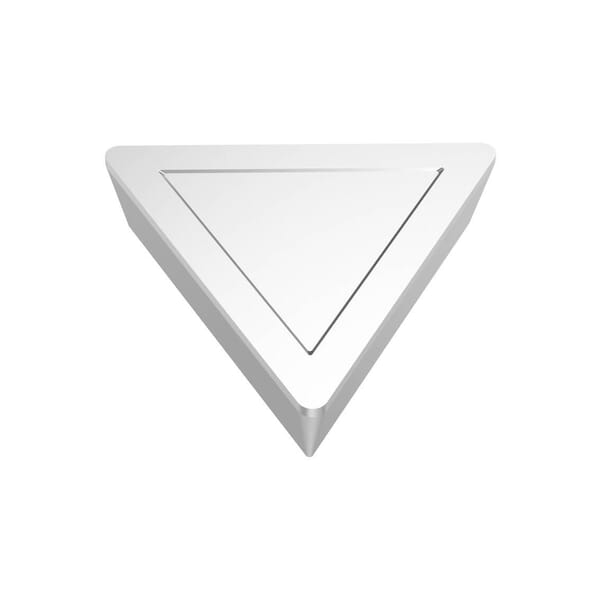

Name: Seco 74010717 Turning Insert, ANSI Code: TPU321 HX, TPUN Insert, Material Grade: N, 160304 Insert, Triangular Shape, 16 Seat, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: HX
Brand: Seco Tools
SKU: Seco_016978
Availability: OutOfStock

Seco Tools

Seco 74010717 Turning Insert, ANSI Code: TPU321 HX, TPUN Insert, Material Grade: N, 160304 Insert, Triangular Shape, 16 Seat, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: HX

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 74010717 Turning Insert, ANSI Code: TPU321 HX, TPUN Insert, Material Grade: N, 160304 Insert, Triangular Shape, 16 Seat, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturers Grade: HX

ManufacturerSeco

Part #288510717

MFG #74010717

Seco Turning Insert, TPUN Insert, 160304 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16.5 mm Length, 16 Seat, 0.4 mm Corner Radius, Manufacturers Grade: HX, ANSI Code: TPU321 HX, ISO Code: TPUN160304 HX, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: TPU321 HX
Corner Radius: 0.4 mm
Country of Origin: IN, SE
Cutting Direction: Neutral
Finish: Uncoated
For Use On: Non-Ferrous Metals
Included Angle: 60 deg
Inscribed Circle: 9.52 mm
Insert Size: 160304
Insert Style: TPUN
ISO Code: TPUN160304 HX
Length: 16.5 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: HX
Material: Carbide
Material Grade: N
Maximum Depth of Cut: 3.75 mm
Relief Angle: 11 deg
Seat Size: 16
Shape: Triangular
Thickness: 3.18 mm
: Seco Turning Insert, TPUN Insert, 160304 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.18 mm Thickness, 16.5 mm Length, 16 Seat, 0.4 mm Corner Radius, Manufacturers Grade: HX, ANSI Code: TPU321 HX, ISO Code: TPUN160304 HX, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals
