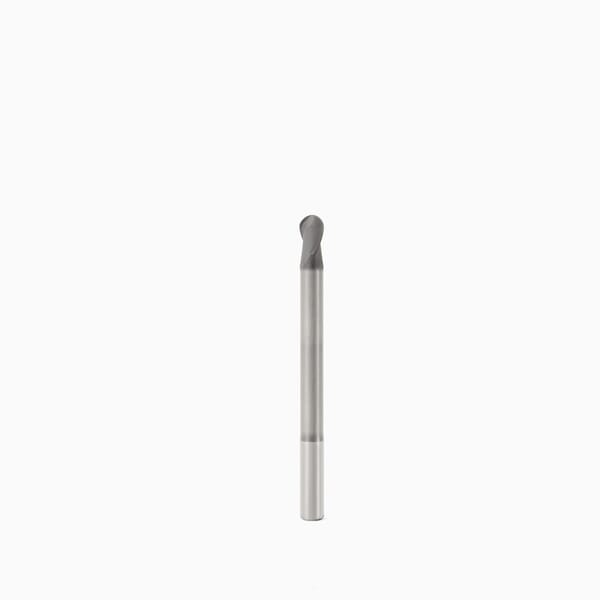

Name: Seco JABRO Diamond 00023502 JD660 Ball End Center Cutting Single End Mill, 0.157 in Dia Cutter, 0.236 in Length of Cut, 2 Flutes, 0.157 in Dia Shank, 1.574 in OAL, Diamond
Brand: Seco Tools
SKU: Seco_015954
Availability: OutOfStock

Seco Tools

Seco JABRO Diamond 00023502 JD660 Ball End Center Cutting Single End Mill, 0.157 in Dia Cutter, 0.236 in Length of Cut, 2 Flutes, 0.157 in Dia Shank, 1.574 in OAL, Diamond

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco JABRO Diamond 00023502 JD660 Ball End Center Cutting Single End Mill, 0.157 in Dia Cutter, 0.236 in Length of Cut, 2 Flutes, 0.157 in Dia Shank, 1.574 in OAL, Diamond

ManufacturerSeco

Part #288508436

MFG #00023502

Seco JABRO Diamond End Mill, Ball End Center Cutting Single End, Series: JD660, 0.157 in Diameter Cutter, 1.574 in Overall Length, 0.236 in Length of Cut, 2 Flutes, Spiral Flute, 0.157 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 660V040-DIAMOND, ISO Code: 660V040-DIAMOND, Solid Carbide, Diamond

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: 660V040-DIAMOND

Country of Origin: NL

Cutter Diameter: 0.157 in

Cutting Direction: Right Hand

Finish: Diamond, Diamond Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: 660V040-DIAMOND

Length of Cut: 0.236 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.574 in

Series: JD660

Shank Diameter: 0.157 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End

JABRO-Diamond - Graphite machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Diamond (CVD) coated tools are the hardest of the coatings, used exclusively for applications in non-ferrous materials such as aluminum, graphite, copper, and carbon fiber
90 deg cutting edge
0.078 in corner radius
1.102 in L minimum clamping
30 deg axial rake
10 deg radial rake
0.153 in Dia neck
0.59 in L neck
E - Neck tool shape
2 teeth across centre cut

The Diamond line offers a wide range of geometries specially designed for graphite machining and covers diameters between 0.2 - 12.0 mm. The combination of hard metal and diamond coating was developed by Jabro Tools in such way that perfect adhesion of the coating is guaranteed.

Catalog

Manufacturer Name: Seco Tools

ANSI Code: 660V040-DIAMOND

Country of Origin: NL

Cutter Diameter: 0.157 in

Cutting Direction: Right Hand

Finish: Diamond, Diamond Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: 660V040-DIAMOND

Length of Cut: 0.236 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.574 in

Series: JD660

Shank Diameter: 0.157 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Single End

JABRO-Diamond - Graphite machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
Diamond (CVD) coated tools are the hardest of the coatings, used exclusively for applications in non-ferrous materials such as aluminum, graphite, copper, and carbon fiber
90 deg cutting edge
0.078 in corner radius
1.102 in L minimum clamping
30 deg axial rake
10 deg radial rake
0.153 in Dia neck
0.59 in L neck
E - Neck tool shape
2 teeth across centre cut

The Diamond line offers a wide range of geometries specially designed for graphite machining and covers diameters between 0.2 - 12.0 mm. The combination of hard metal and diamond coating was developed by Jabro Tools in such way that perfect adhesion of the coating is guaranteed.

Catalog
