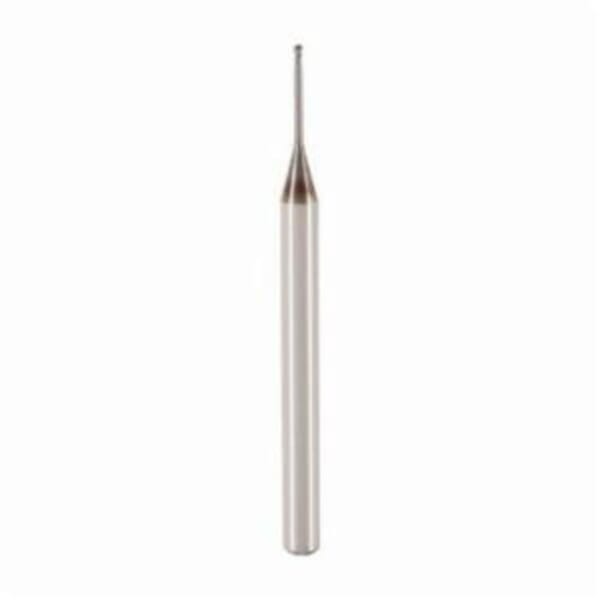

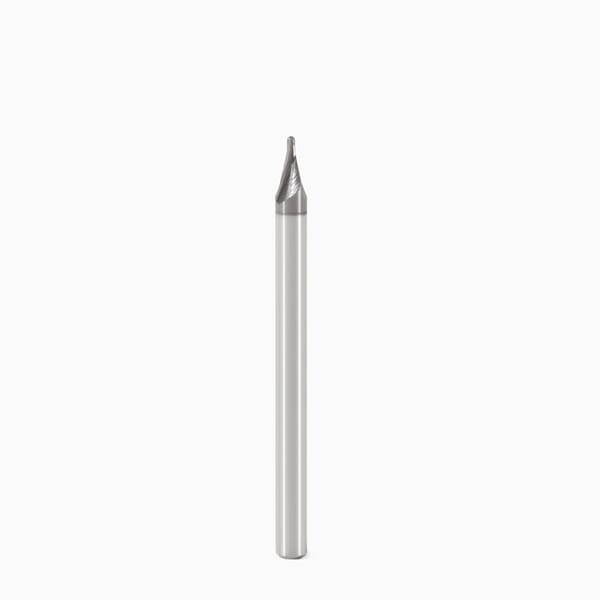

Seco JABRO Mini 00023268 JM915 Ball End Center Cutting Long Length Single End Mill, 0.039 in Dia Cutter, 0.039 in Length of Cut, 2 Flutes, 0.118 in Dia Shank, 1.574 in OAL, MEGA-T/PVD Coated

ManufacturerSeco

Part #288508214

MFG #00023268

Seco JABRO Mini End Mill, Ball End Center Cutting Long Length Single End, Series: JM915, 0.039 in Diameter Cutter, 1.574 in Overall Length, 0.039 in Length of Cut, 2 Flutes, Spiral Flute, 0.118 in Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Cylindrical Shank, ANSI Code: 915L010-MEGA-T, ISO Code: 915L010-MEGA-T, Solid Carbide, MEGA-T/PVD Coated

$134.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: 915L010-MEGA-T

Country of Origin: NL

Cutter Diameter: 0.039 in

Cutting Direction: Right Hand

Finish: MEGA-T/PVD Coated

Flute Type: Spiral

Helix Angle: 20 deg

ISO Code: 915L010-MEGA-T

Length of Cut: 0.039 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.574 in

Series: JM915

Shank Diameter: 0.118 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Long Length Single End

JABRO-Mini - Micro machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
MEGA-T is commonly used on aluminum, copper, titanium, graphite, hardened steels and plastic
90 deg cutting edge
0.019 in corner radius
1.102 in L minimum clamping
20 deg axial rake
4 deg radial rake
0.037 in Dia neck
0.196 - 0.35 in L neck
J - Tool shape

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

Manufacturer Name: Seco Tools

ANSI Code: 915L010-MEGA-T

Country of Origin: NL

Cutter Diameter: 0.039 in

Cutting Direction: Right Hand

Finish: MEGA-T/PVD Coated

Flute Type: Spiral

Helix Angle: 20 deg

ISO Code: 915L010-MEGA-T

Length of Cut: 0.039 in

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 1.574 in

Series: JM915

Shank Diameter: 0.118 in

Shank Type: Cylindrical

Type: Ball End Center Cutting Long Length Single End

JABRO-Mini - Micro machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
MEGA-T is commonly used on aluminum, copper, titanium, graphite, hardened steels and plastic
90 deg cutting edge
0.019 in corner radius
1.102 in L minimum clamping
20 deg axial rake
4 deg radial rake
0.037 in Dia neck
0.196 - 0.35 in L neck
J - Tool shape

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.
