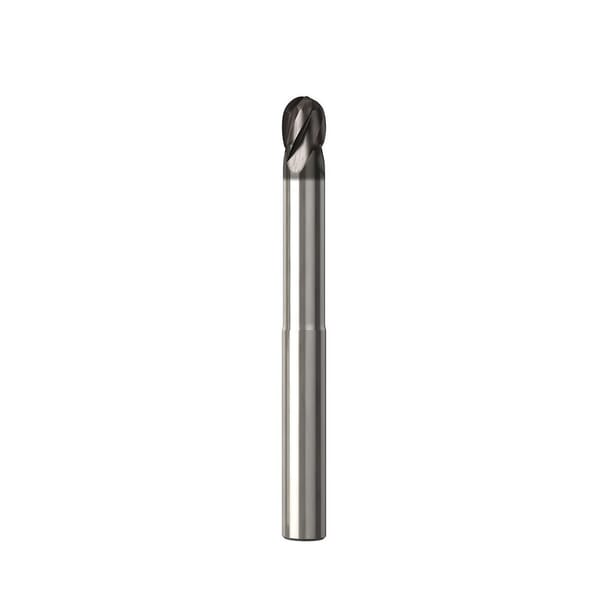

JABRO Solid2 07892 JS534 Ball End Center Cutting Long Length Medium Helix Single End End Mill, 6 mm Dia Cutter, 6 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 75 mm OAL, NXT/PVD Coated
Manufacturer: JABRO
MFG #: 02928396
JABRO Solid2 07892 JS534 Ball End Center Cutting Long Length Medium Helix Single End End Mill, 6 mm Dia Cutter, 6 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 75 mm OAL, NXT/PVD Coated

Your Price

$103.00 / EA
Pack1/PK
Available for Purchase
Available for Purchase
JABRO Solid2 07892 JS534 Ball End Center Cutting Long Length Medium Helix Single End End Mill, 6 mm Dia Cutter, 6 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 75 mm OAL, NXT/PVD Coated
Manufacturer: JABRO
MFG #: 02928396

Your Price

$103.00 / EA
Pack1/PK

Details

Part#288507892

Manufacturer:Seco Tools

MFG #02928396

JABRO Solid2 End Mill, Ball End Center Cutting Long Length Medium Helix Single End, Series: JS534, 6 mm Diameter Cutter, 75 mm Overall Length, 6 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: JS534060E3B.3Z4-NXT, ISO Code: JS534060E3B.3Z4-NXT, Solid Carbide, NXT/PVD Coated

Specifications

ANSI Code
JS534060E3B.3Z4-NXT
Cutter Diameter
6 mm
Cutting Direction
Right Hand
Finish
NXT/PVD Coated
Flute Type
Spiral
Helix Angle
30 deg
ISO Code
JS534060E3B.3Z4-NXT
Length of Cut
6 mm
Material
Solid Carbide
Number of Flutes
4
Overall Length
75 mm
Series
JS534
Shank Diameter
6 mm
Shank Type
Weldon Flat
Type
Ball End Center Cutting Long Length Medium Helix Single End

Item Features

  • JABRO-Solid2 - General machining technology
  • 2 teeth across centre cut
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
  • 90 deg cutting edge
  • 3 mm corner radius
  • 36 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • E - Neck tool shape
288507892

JABRO Solid2 07892 JS534 Ball End Center Cutting Long Length Medium Helix Single End End Mill, 6 mm Dia Cutter, 6 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 75 mm OAL, NXT/PVD Coated

Description


JABRO Solid2 End Mill, Ball End Center Cutting Long Length Medium Helix Single End, Series: JS534, 6 mm Diameter Cutter, 75 mm Overall Length, 6 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: JS534060E3B.3Z4-NXT, ISO Code: JS534060E3B.3Z4-NXT, Solid Carbide, NXT/PVD Coated

Product Number: 288507892

Manufacturer: JABRO

Price:

$103.00 / EA
Pack1/PK

MFG #: 02928396

Manufacturer: Seco Tools

Specifications

ANSI Code: JS534060E3B.3Z4-NXT

Cutter Diameter: 6 mm

Cutting Direction: Right Hand

Finish: NXT/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: JS534060E3B.3Z4-NXT

Length of Cut: 6 mm

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 75 mm

Series: JS534

Shank Diameter: 6 mm

Shank Type: Weldon Flat

Type: Ball End Center Cutting Long Length Medium Helix Single End

Item Features

  • JABRO-Solid2 - General machining technology
  • 2 teeth across centre cut
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
  • 90 deg cutting edge
  • 3 mm corner radius
  • 36 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • E - Neck tool shape
