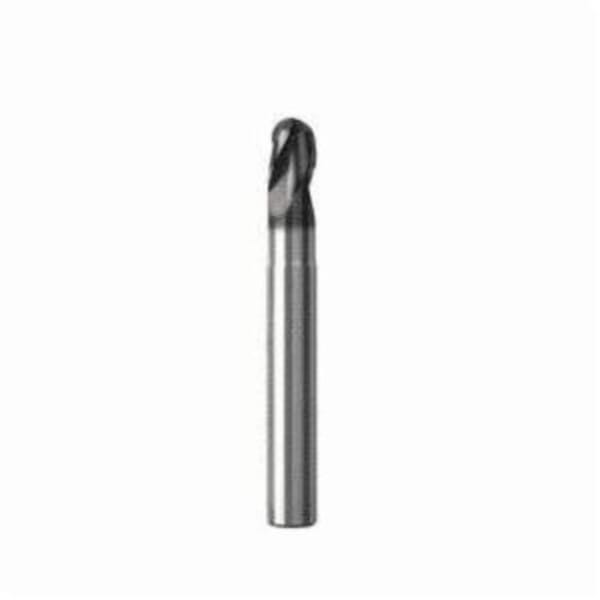

Seco JABRO Solid2 02928391 JS534 Ball End Center Cutting Medium Helix Regular Length Single End Mill, 4 mm Dia Cutter, 20 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 63 mm OAL, NXT/PVD Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco JABRO Solid2 02928391 JS534 Ball End Center Cutting Medium Helix Regular Length Single End Mill, 4 mm Dia Cutter, 20 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 63 mm OAL, NXT/PVD Coated

ManufacturerSeco

Part #288507886

MFG #02928391

Seco JABRO Solid2 End Mill, Ball End Center Cutting Medium Helix Regular Length Single End, Series: JS534, 4 mm Diameter Cutter, 63 mm Overall Length, 20 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: JS534040F2B.3Z4-NXT, ISO Code: JS534040F2B.3Z4-NXT, Solid Carbide, NXT/PVD Coated

$105.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: JS534040F2B.3Z4-NXT

Country of Origin: NL

Cutter Diameter: 4 mm

Cutting Direction: Right Hand

Finish: NXT/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: JS534040F2B.3Z4-NXT

Length of Cut: 20 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 63 mm

Series: JS534

Shank Diameter: 6 mm

Shank Type: Weldon Flat

Type: Ball End Center Cutting Medium Helix Regular Length Single End

JABRO-Solid2 - General machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
90 deg cutting edge
2 mm corner radius
36 mm L minimum clamping
30 deg axial rake
10 deg radial rake
F - Step tool shape
2 teeth across centre cut

Secos new generation of Jabro-Solid2 solid endmills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimised geometries and special edge preparations along with a new NXT coating technology.

Manufacturer Name: Seco Tools

ANSI Code: JS534040F2B.3Z4-NXT

Country of Origin: NL

Cutter Diameter: 4 mm

Cutting Direction: Right Hand

Finish: NXT/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: JS534040F2B.3Z4-NXT

Length of Cut: 20 mm

Manufacturer Name: Seco Tools

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 63 mm

Series: JS534

Shank Diameter: 6 mm

Shank Type: Weldon Flat

Type: Ball End Center Cutting Medium Helix Regular Length Single End

JABRO-Solid2 - General machining technology
Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
90 deg cutting edge
2 mm corner radius
36 mm L minimum clamping
30 deg axial rake
10 deg radial rake
F - Step tool shape
2 teeth across centre cut
