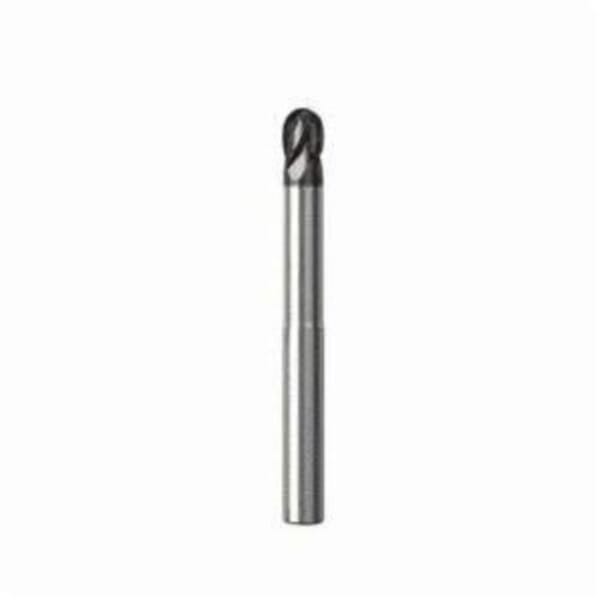

JABRO Solid2 07844 JS534 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 12 mm Dia Cutter, 36 mm Length of Cut, 4 Flutes, 12 mm Dia Shank, 100 mm OAL, NXT/PVD Coated
Description
JABRO End Mill, Ball End Center Cutting Medium Helix Single End Stub Length, Series: HELI-GRIP, 12 mm Cutter Dia, 100 mm Overall Length, 36 mm Length of Cut, 4 Flutes, Spiral Flute, 12 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: JS534120D1B.0Z4-NXT, ISO Code: JS534120D1B.0Z4-NXT, Solid Carbide, NXT/PVD Coated
Product Number: 288507844
Manufacturer: JABRO
Price:
MFG #: 02928381
Manufacturer: Seco Tools
Specifications
ANSI Code: JS534120D1B.0Z4-NXT
Cutter Diameter: 12 mm
Cutting Direction: Right Hand
Finish: NXT/PVD Coated
Flute Type: Spiral
Helix Angle: 30 deg
ISO Code: JS534120D1B.0Z4-NXT
Length of Cut: 36 mm
Material: Solid Carbide
Number of Flutes: 4
Overall Length: 100 mm
Series: JS534
Shank Diameter: 12 mm
Shank Type: Cylindrical
Type: Ball End Center Cutting Medium Helix Single End Stub Length
Item Features
- JABRO-Solid2 - General machining technology
- 2 teeth across centre cut
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
- 90 deg cutting edge
- 6 mm corner radius
- 45 mm L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
