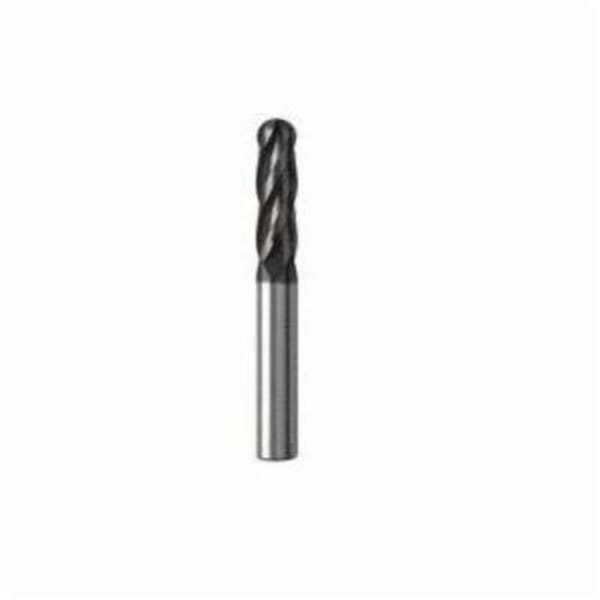

JABRO Solid2 07833 JS534 Ball End Center Cutting Medium Helix Regular Length Single End End Mill, 8 mm Dia Cutter, 40 mm Length of Cut, 4 Flutes, 8 mm Dia Shank, 80 mm OAL, NXT/PVD Coated
Your Price
JABRO Solid2 07833 JS534 Ball End Center Cutting Medium Helix Regular Length Single End End Mill, 8 mm Dia Cutter, 40 mm Length of Cut, 4 Flutes, 8 mm Dia Shank, 80 mm OAL, NXT/PVD Coated
Your Price
JABRO Solid2 07833 JS534 Ball End Center Cutting Medium Helix Regular Length Single End End Mill, 8 mm Dia Cutter, 40 mm Length of Cut, 4 Flutes, 8 mm Dia Shank, 80 mm OAL, NXT/PVD Coated
Description
JABRO Solid2 End Mill, Ball End Center Cutting Medium Helix Regular Length Single End, Series: JS534, 8 mm Diameter Cutter, 80 mm Overall Length, 40 mm Length of Cut, 4 Flutes, Spiral Flute, 8 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: JS534080D2B.0Z4-NXT, ISO Code: JS534080D2B.0Z4-NXT, Solid Carbide, NXT/PVD Coated
Product Number: 288507833
Manufacturer: JABRO
Price:
MFG #: 02928376
Manufacturer: Seco Tools
Specifications
ANSI Code: JS534080D2B.0Z4-NXT
Cutter Diameter: 8 mm
Cutting Direction: Right Hand
Finish: NXT/PVD Coated
Flute Type: Spiral
Helix Angle: 30 deg
ISO Code: JS534080D2B.0Z4-NXT
Length of Cut: 40 mm
Material: Solid Carbide
Number of Flutes: 4
Overall Length: 80 mm
Series: JS534
Shank Diameter: 8 mm
Shank Type: Cylindrical
Type: Ball End Center Cutting Medium Helix Regular Length Single End
Item Features
- JABRO-Solid2 - General machining technology
- 2 teeth across centre cut
- Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
- NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
- 90 deg cutting edge
- 4 mm corner radius
- 36 mm L minimum clamping
- 30 deg axial rake
- 10 deg radial rake
- D - Cylindrical tool shape
