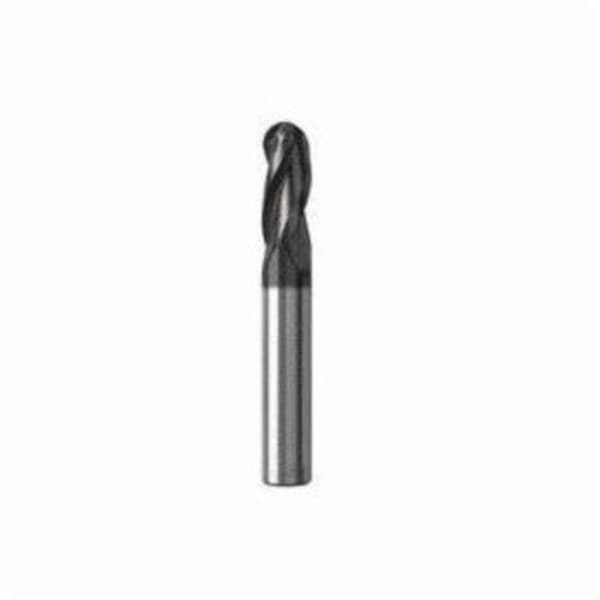

JABRO Solid2 07709 JS533 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 16 mm Dia Cutter, 32 mm Length of Cut, 3 Flutes, 16 mm Dia Shank, 109 mm OAL, NXT/PVD Coated
Manufacturer: JABRO
MFG #: 02928334
JABRO Solid2 07709 JS533 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 16 mm Dia Cutter, 32 mm Length of Cut, 3 Flutes, 16 mm Dia Shank, 109 mm OAL, NXT/PVD Coated

Your Price

$265.00 / EA
Pack1/PK
Available for Purchase
Available for Purchase
JABRO Solid2 07709 JS533 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 16 mm Dia Cutter, 32 mm Length of Cut, 3 Flutes, 16 mm Dia Shank, 109 mm OAL, NXT/PVD Coated
Manufacturer: JABRO
MFG #: 02928334

Your Price

$265.00 / EA
Pack1/PK

Details

Part#288507709

Manufacturer:Seco Tools

MFG #02928334

JABRO Solid2 End Mill, Ball End Center Cutting Medium Helix Single End Stub Length, Series: JS533, 16 mm Diameter Cutter, 109 mm Overall Length, 32 mm Length of Cut, 3 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: JS533160D1B.3Z3-NXT, ISO Code: JS533160D1B.3Z3-NXT, Solid Carbide, NXT/PVD Coated

Specifications

ANSI Code
JS533160D1B.3Z3-NXT
Cutter Diameter
16 mm
Cutting Direction
Right Hand
Finish
NXT/PVD Coated
Flute Type
Spiral
Helix Angle
30 deg
ISO Code
JS533160D1B.3Z3-NXT
Length of Cut
32 mm
Material
Solid Carbide
Number of Flutes
3
Overall Length
109 mm
Series
JS533
Shank Diameter
16 mm
Shank Type
Weldon Flat
Type
Ball End Center Cutting Medium Helix Single End Stub Length

Item Features

  • JABRO-Solid2 - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
  • 90 deg cutting edge
  • 8 mm corner radius
  • 48 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • D - Cylindrical tool shape
288507709

JABRO Solid2 07709 JS533 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 16 mm Dia Cutter, 32 mm Length of Cut, 3 Flutes, 16 mm Dia Shank, 109 mm OAL, NXT/PVD Coated

Description


JABRO Solid2 End Mill, Ball End Center Cutting Medium Helix Single End Stub Length, Series: JS533, 16 mm Diameter Cutter, 109 mm Overall Length, 32 mm Length of Cut, 3 Flutes, Spiral Flute, 16 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, ANSI Code: JS533160D1B.3Z3-NXT, ISO Code: JS533160D1B.3Z3-NXT, Solid Carbide, NXT/PVD Coated

Product Number: 288507709

Manufacturer: JABRO

Price:

$265.00 / EA
Pack1/PK

MFG #: 02928334

Manufacturer: Seco Tools

Specifications

ANSI Code: JS533160D1B.3Z3-NXT

Cutter Diameter: 16 mm

Cutting Direction: Right Hand

Finish: NXT/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: JS533160D1B.3Z3-NXT

Length of Cut: 32 mm

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 109 mm

Series: JS533

Shank Diameter: 16 mm

Shank Type: Weldon Flat

Type: Ball End Center Cutting Medium Helix Single End Stub Length

Item Features

  • JABRO-Solid2 - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
  • 90 deg cutting edge
  • 8 mm corner radius
  • 48 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • D - Cylindrical tool shape
