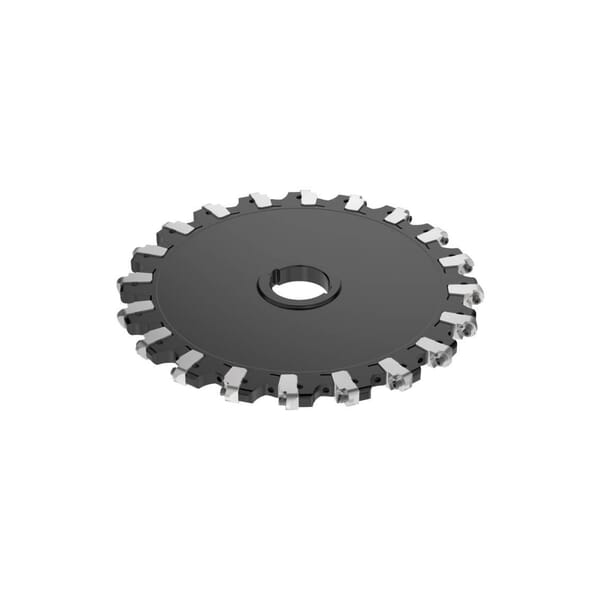

Name: Seco 02993846 335.25 Type A Disc Milling Cutter With Internal Coolant, ANSI Code: 335.25-315.1317XL.50-20R-R8, Arbor Connection, 320 mm Dia x 7.9 mm W Cutting, Right Hand Cutting, 50 mm Dia Hole, 50 mm Dia Arbor, 124.1 mm Max Depth of Cut
Brand: Seco Tools
SKU: SECO_TOOLS_Q1_18_002934
Availability: OutOfStock

Seco Tools

Seco 02993846 335.25 Type A Disc Milling Cutter With Internal Coolant, ANSI Code: 335.25-315.1317XL.50-20R-R8, Arbor Connection, 320 mm Dia x 7.9 mm W Cutting, Right Hand Cutting, 50 mm Dia Hole, 50 mm Dia Arbor, 124.1 mm Max Depth of Cut

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Seco Tools

Seco 02993846 335.25 Type A Disc Milling Cutter With Internal Coolant, ANSI Code: 335.25-315.1317XL.50-20R-R8, Arbor Connection, 320 mm Dia x 7.9 mm W Cutting, Right Hand Cutting, 50 mm Dia Hole, 50 mm Dia Arbor, 124.1 mm Max Depth of Cut

ManufacturerSeco

Part #288507344

MFG #02993846

Seco Disc Milling Cutter, Type A, Series: 335.25, 320 mm Cutting Dia, 320 mm Overall Length, 7.9 mm Cutting Width, 20 Inserts, Insert Compatibility: RP..1605, Arbor Shank, Right Hand Cutting, 50 mm Arbor, Arbor, 50 mm Hole Dia, 124.1 mm Maximum Depth of Cut, ANSI Code: 335.25-315.1317XL.50-20R-R8

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Seco Tools

ANSI Code: 335.25-315.1317XL.50-20R-R8

Arbor Hole Diameter: 50 mm

Connection Type: Arbor, Arbor Hole

Country of Origin: FR, SE

Cutting Diameter: 320 mm

Cutting Direction: Right Hand

Cutting Width: 7.9 mm

Hole Diameter: 50 mm

Insert Compatibility: RP..1605

Manufacturer Name: Seco Tools

Maximum Depth of Cut: 124.1 mm

Number of Inserts: 20

Overall Length: 320 mm

Series: 335.25

Shank Type: Arbor Hole

Type: Type A

Economical, versatile and free cutting solution for large width of cut
Exchangeable cassettes ensure long, reliable cutter performance
Inserts with at least four cutting edges help reduce the cost per part
Insert geometries provide freer cutting operations in any type of material
Optimized chip room for trouble free operation and enhanced productivity

Our extensive range of standard disc milling cutters, insert radii, geometry and grades tackles any challenges brought by disc milling applications. With the widest range of inserts, cutter bodies, and attachment types in the industry, we are your single source tooling supplier for sawing, T-slotting, slotting, deep slotting, dual radius slotting, back facing, circular or helical interpolation, square shoulder milling, circlip grooving and copy milling. And our products are developed with extensive research to ensure they meet the needs to todays materials and machining processes. While our full line of standard disc milling cutters covers most applications, we also offer special design and manufacturing solutions for industry specific needs. This includes cutters for gear machining in the power generation industry, automotive crankshaft milling, large diameters cutter solutions for many typical aerospace components, cutters for oil and gas pipe sawing and cutters with round inserts for hip prosthesis.

Catalog

Video Link

Manufacturer Name: Seco Tools

ANSI Code: 335.25-315.1317XL.50-20R-R8

Arbor Hole Diameter: 50 mm

Connection Type: Arbor, Arbor Hole

Country of Origin: FR, SE

Cutting Diameter: 320 mm

Cutting Direction: Right Hand

Cutting Width: 7.9 mm

Hole Diameter: 50 mm

Insert Compatibility: RP..1605

Manufacturer Name: Seco Tools

Maximum Depth of Cut: 124.1 mm

Number of Inserts: 20

Overall Length: 320 mm

Series: 335.25

Shank Type: Arbor Hole

Type: Type A

Economical, versatile and free cutting solution for large width of cut
Exchangeable cassettes ensure long, reliable cutter performance
Inserts with at least four cutting edges help reduce the cost per part
Insert geometries provide freer cutting operations in any type of material
Optimized chip room for trouble free operation and enhanced productivity

Our extensive range of standard disc milling cutters, insert radii, geometry and grades tackles any challenges brought by disc milling applications. With the widest range of inserts, cutter bodies, and attachment types in the industry, we are your single source tooling supplier for sawing, T-slotting, slotting, deep slotting, dual radius slotting, back facing, circular or helical interpolation, square shoulder milling, circlip grooving and copy milling. And our products are developed with extensive research to ensure they meet the needs to todays materials and machining processes. While our full line of standard disc milling cutters covers most applications, we also offer special design and manufacturing solutions for industry specific needs. This includes cutters for gear machining in the power generation industry, automotive crankshaft milling, large diameters cutter solutions for many typical aerospace components, cutters for oil and gas pipe sawing and cutters with round inserts for hip prosthesis.
