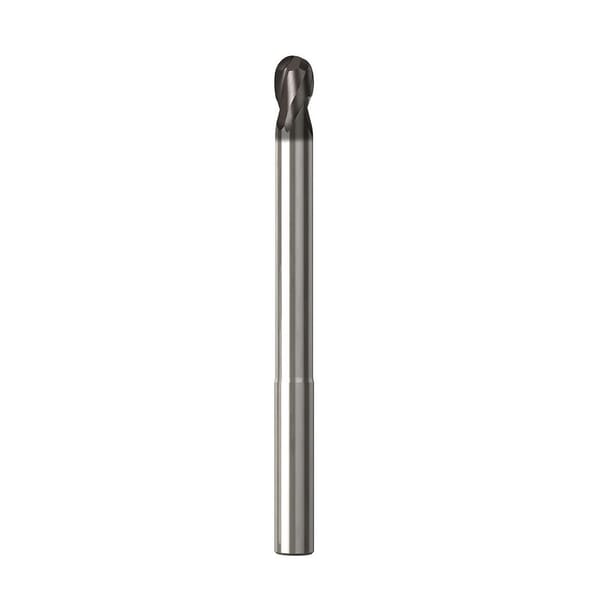

JABRO Solid2 07159 JS532 Ball End Center Cutting Long Length Medium Helix Single End End Mill, 12 mm Dia Cutter, 16 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 75 mm OAL, NXT/PVD Coated
Manufacturer: JABRO
MFG #: 02928221
JABRO Solid2 07159 JS532 Ball End Center Cutting Long Length Medium Helix Single End End Mill, 12 mm Dia Cutter, 16 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 75 mm OAL, NXT/PVD Coated

Your Price

$274.00 / EA
Pack1/PK
Available for Purchase
Available for Purchase
JABRO Solid2 07159 JS532 Ball End Center Cutting Long Length Medium Helix Single End End Mill, 12 mm Dia Cutter, 16 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 75 mm OAL, NXT/PVD Coated
Manufacturer: JABRO
MFG #: 02928221

Your Price

$274.00 / EA
Pack1/PK

Details

Part#288507159

Manufacturer:Seco Tools

MFG #02928221

JABRO End Mill, Ball End Center Cutting Long Length Medium Helix Single End, 12 mm Cutter Dia, 75 mm Overall Length, 16 mm Length of Cut, 2 Flutes, Spiral Flute, 16 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: JS532120E3B.0Z2-NXT, ISO Code: JS532120E3B.0Z2-NXT, Solid Carbide, NXT/PVD Coated

Specifications

ANSI Code
JS532120E3B.0Z2-NXT
Cutter Diameter
12 mm
Cutting Direction
Right Hand
Finish
NXT/PVD Coated
Flute Type
Spiral
Helix Angle
30 deg
ISO Code
JS532120E3B.0Z2-NXT
Length of Cut
16 mm
Material
Solid Carbide
Number of Flutes
2
Overall Length
75 mm
Series
JS532
Shank Diameter
16 mm
Shank Type
Cylindrical
Type
Ball End Center Cutting Long Length Medium Helix Single End

Item Features

  • JABRO-Solid2 - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
  • 90 deg cutting edge
  • 6 mm corner radius
  • 45 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • E - Neck tool shape
288507159

JABRO Solid2 07159 JS532 Ball End Center Cutting Long Length Medium Helix Single End End Mill, 12 mm Dia Cutter, 16 mm Length of Cut, 2 Flutes, 16 mm Dia Shank, 75 mm OAL, NXT/PVD Coated

Description


JABRO End Mill, Ball End Center Cutting Long Length Medium Helix Single End, 12 mm Cutter Dia, 75 mm Overall Length, 16 mm Length of Cut, 2 Flutes, Spiral Flute, 16 mm Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: JS532120E3B.0Z2-NXT, ISO Code: JS532120E3B.0Z2-NXT, Solid Carbide, NXT/PVD Coated

Product Number: 288507159

Manufacturer: JABRO

Price:

$274.00 / EA
Pack1/PK

MFG #: 02928221

Manufacturer: Seco Tools

Specifications

ANSI Code: JS532120E3B.0Z2-NXT

Cutter Diameter: 12 mm

Cutting Direction: Right Hand

Finish: NXT/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: JS532120E3B.0Z2-NXT

Length of Cut: 16 mm

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 75 mm

Series: JS532

Shank Diameter: 16 mm

Shank Type: Cylindrical

Type: Ball End Center Cutting Long Length Medium Helix Single End

Item Features

  • JABRO-Solid2 - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
  • 90 deg cutting edge
  • 6 mm corner radius
  • 45 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • E - Neck tool shape
