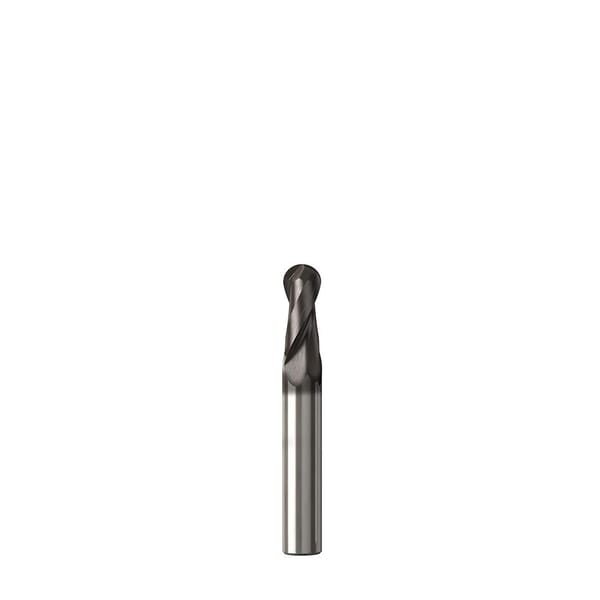

JABRO Solid2 07065 JS532 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 5 mm Dia Cutter, 10 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 57 mm OAL, NXT/PVD Coated
Manufacturer: JABRO
MFG #: 02928207
JABRO Solid2 07065 JS532 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 5 mm Dia Cutter, 10 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 57 mm OAL, NXT/PVD Coated

Your Price

$69.40 / EA
Pack1/PK
Available for Purchase
Available for Purchase
JABRO Solid2 07065 JS532 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 5 mm Dia Cutter, 10 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 57 mm OAL, NXT/PVD Coated
Manufacturer: JABRO
MFG #: 02928207

Your Price

$69.40 / EA
Pack1/PK

Details

Part#288507065

Manufacturer:Seco Tools

MFG #02928207

JABRO Solid2 End Mill, Ball End Center Cutting Medium Helix Single End Stub Length, Series: JS532, 5 mm Diameter Cutter, 57 mm Overall Length, 10 mm Length of Cut, 2 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: JS532050F1B.0Z2-NXT, ISO Code: JS532050F1B.0Z2-NXT, Solid Carbide, NXT/PVD Coated

Specifications

ANSI Code
JS532050F1B.0Z2-NXT
Cutter Diameter
5 mm
Cutting Direction
Right Hand
Finish
NXT/PVD Coated
Flute Type
Spiral
Helix Angle
30 deg
ISO Code
JS532050F1B.0Z2-NXT
Length of Cut
10 mm
Material
Solid Carbide
Number of Flutes
2
Overall Length
57 mm
Series
JS532
Shank Diameter
6 mm
Shank Type
Cylindrical
Type
Ball End Center Cutting Medium Helix Single End Stub Length

Item Features

  • JABRO-Solid2 - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
  • 90 deg cutting edge
  • 2.5 mm corner radius
  • 36 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • F - Step tool shape
288507065

JABRO Solid2 07065 JS532 Ball End Center Cutting Medium Helix Single End Stub Length End Mill, 5 mm Dia Cutter, 10 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 57 mm OAL, NXT/PVD Coated

Description


JABRO Solid2 End Mill, Ball End Center Cutting Medium Helix Single End Stub Length, Series: JS532, 5 mm Diameter Cutter, 57 mm Overall Length, 10 mm Length of Cut, 2 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: JS532050F1B.0Z2-NXT, ISO Code: JS532050F1B.0Z2-NXT, Solid Carbide, NXT/PVD Coated

Product Number: 288507065

Manufacturer: JABRO

Price:

$69.40 / EA
Pack1/PK

MFG #: 02928207

Manufacturer: Seco Tools

Specifications

ANSI Code: JS532050F1B.0Z2-NXT

Cutter Diameter: 5 mm

Cutting Direction: Right Hand

Finish: NXT/PVD Coated

Flute Type: Spiral

Helix Angle: 30 deg

ISO Code: JS532050F1B.0Z2-NXT

Length of Cut: 10 mm

Material: Solid Carbide

Number of Flutes: 2

Overall Length: 57 mm

Series: JS532

Shank Diameter: 6 mm

Shank Type: Cylindrical

Type: Ball End Center Cutting Medium Helix Single End Stub Length

Item Features

  • JABRO-Solid2 - General machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • NXT is an advanced titanium aluminum nitride (TiAlN) coating specially designed to perform on a wide range of materials, the coating offers high heat resistance, longer tool life and ensures reduced friction, so the wear develops less rapidly and the chip removal is optimized
  • 90 deg cutting edge
  • 2.5 mm corner radius
  • 36 mm L minimum clamping
  • 30 deg axial rake
  • 10 deg radial rake
  • F - Step tool shape
