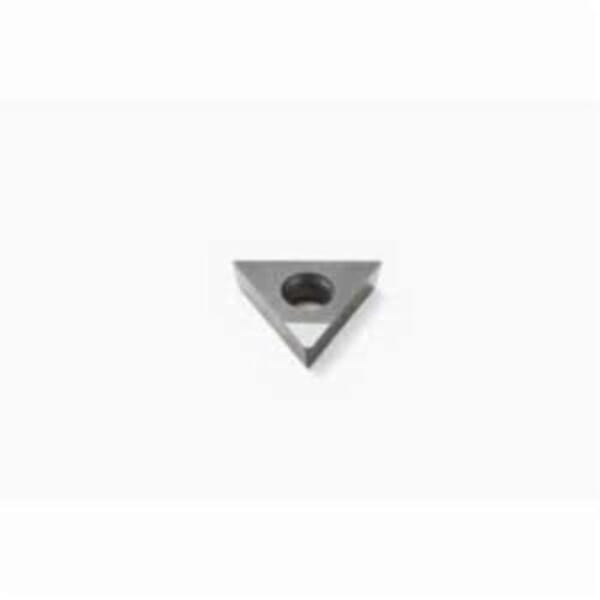

Name: Seco Secomax 00005689 Turning Insert, ANSI Code: TCMW21.51F-L1 PCD20, TCMW Insert, 110204 Insert, Triangular Shape, 11 Seat, PCD, Manufacturers Grade: PCD20
Brand: Seco Tools
SKU: Seco_014282
Availability: OutOfStock

Seco Tools

Seco Secomax 00005689 Turning Insert, ANSI Code: TCMW21.51F-L1 PCD20, TCMW Insert, 110204 Insert, Triangular Shape, 11 Seat, PCD, Manufacturers Grade: PCD20

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco Secomax 00005689 Turning Insert, ANSI Code: TCMW21.51F-L1 PCD20, TCMW Insert, 110204 Insert, Triangular Shape, 11 Seat, PCD, Manufacturers Grade: PCD20

ManufacturerSeco

Part #288505689

MFG #00005689

Seco Secomax Turning Insert, TCMW Insert, 110204 Insert, Triangular, 2.75 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 mm Length, 11 Seat, L1 Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Hole Dia, Manufacturers Grade: PCD20, ANSI Code: TCMW21.51F-L1 PCD20, ISO Code: TCMW110204F-L1 PCD20, 60 deg Included Angle, 7 deg Relief Angle, PCD, Uncoated

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: TCMW21.51F-L1 PCD20
Chipbreaker: L1
Corner Radius: 0.4 mm
Country of Origin: DE, PL
Finish: Uncoated
Hole Diameter: 2.9 mm
Included Angle: 60 deg
Inscribed Circle: 6.35 mm
Insert Size: 110204
Insert Style: TCMW
ISO Code: TCMW110204F-L1 PCD20
Length: 11 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: PCD20
Material: PCD
Maximum Depth of Cut: 2.75 mm
Relief Angle: 7 deg
Seat Size: 11
Shape: Triangular
Thickness: 2.38 mm
: The Turning insert TCMW110204F-L1 PCD20 features a positive type with a clearance angle major of 7 degrees. It is made from PCD grade PCD20 and has one cutting edge. With a corner radius of 0.4 mm and a cutting edge effective length of 1.74 mm, the insert is designed for precise turning operations. The fixing hole diameter measures 2.9 mm. This insert is intended primarily for non-ferrous materials. The single cutting edge and PCD grade indicate suitability for applications requiring wear resistance and sharp cutting performance in non-ferrous workpieces. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: TCMW21.51F-L1 PCD20
Chipbreaker: L1
Corner Radius: 0.4 mm
Country of Origin: DE, PL
Finish: Uncoated
Hole Diameter: 2.9 mm
Included Angle: 60 deg
Inscribed Circle: 6.35 mm
Insert Size: 110204
Insert Style: TCMW
ISO Code: TCMW110204F-L1 PCD20
Length: 11 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: PCD20
Material: PCD
Maximum Depth of Cut: 2.75 mm
Relief Angle: 7 deg
Seat Size: 11
Shape: Triangular
Thickness: 2.38 mm
: The Turning insert TCMW110204F-L1 PCD20 features a positive type with a clearance angle major of 7 degrees. It is made from PCD grade PCD20 and has one cutting edge. With a corner radius of 0.4 mm and a cutting edge effective length of 1.74 mm, the insert is designed for precise turning operations. The fixing hole diameter measures 2.9 mm. This insert is intended primarily for non-ferrous materials. The single cutting edge and PCD grade indicate suitability for applications requiring wear resistance and sharp cutting performance in non-ferrous workpieces. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
