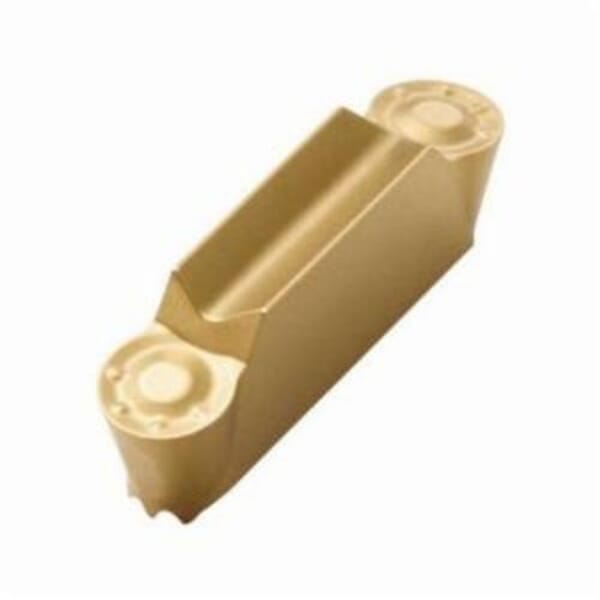

Name: Seco 00029848 MDT Double End Turning Insert, ANSI Code: LCMF1304M0-0400-MP CP500, LCMF Insert, Material Grade: M, 1304 Insert, Rectangle Shape, 13 Seat, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: CP500
Brand: Seco Tools
SKU: Seco_013736
Availability: OutOfStock

Seco Tools

Seco 00029848 MDT Double End Turning Insert, ANSI Code: LCMF1304M0-0400-MP CP500, LCMF Insert, Material Grade: M, 1304 Insert, Rectangle Shape, 13 Seat, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: CP500

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00029848 MDT Double End Turning Insert, ANSI Code: LCMF1304M0-0400-MP CP500, LCMF Insert, Material Grade: M, 1304 Insert, Rectangle Shape, 13 Seat, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturers Grade: CP500

ManufacturerSeco

Part #288504329

MFG #00029848

Seco Turning Insert, Double End, Series: MDT, LCMF Insert, 1304 Insert, Rectangle Shape, 4 mm Thickness, 4 mm Width, 12.3 mm Length, 13 Seat, MP Chipbreaker, 2 mm Corner Radius, Manufacturers Grade: CP500, ANSI Code: LCMF1304M0-0400-MP CP500, ISO Code: LCMF1304M0-0400-MP CP500, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, TiAlN/TiN, Material Grade: M, For Use On: Stainless Steel

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: LCMF1304M0-0400-MP CP500
Chipbreaker: MP
Corner Radius: 2 mm
Country of Origin: IN, SE
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On: Stainless Steel
Insert Size: 1304
Insert Style: LCMF
ISO Code: LCMF1304M0-0400-MP CP500
Length: 12.3 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Material Grade: M
Relief Angle: 7 deg
Seat Size: 13
Series: MDT
Shape: Rectangle
Thickness: 4 mm
Type: Double End
Width: 4 mm
: The Groove part insert LCMF1304M0-0400-MP CP500 features a positive type design with a clearance angle major of 7 degrees. With a cutting width of 4 mm and an effective cutting edge length of 2 mm, the insert has two cutting edges and a corner radius of 2 mm. It is made from a carbide PVD grade and has a neutral insert hand. The insert is suitable for machining steel, stainless steel, and superalloys and titanium. It is also partially applicable for cast irons, non-ferrous metals, and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog

: Manufacturer Name: Seco Tools
ANSI Code: LCMF1304M0-0400-MP CP500
Chipbreaker: MP
Corner Radius: 2 mm
Country of Origin: IN, SE
Cutting Direction: Neutral
Finish: PVD-TiAlN+TiN Coated, TiAlN/TiN
For Use On: Stainless Steel
Insert Size: 1304
Insert Style: LCMF
ISO Code: LCMF1304M0-0400-MP CP500
Length: 12.3 mm
Manufacturer Name: Seco Tools
Manufacturers Grade: CP500
Material: Carbide
Material Grade: M
Relief Angle: 7 deg
Seat Size: 13
Series: MDT
Shape: Rectangle
Thickness: 4 mm
Type: Double End
Width: 4 mm
: The Groove part insert LCMF1304M0-0400-MP CP500 features a positive type design with a clearance angle major of 7 degrees. With a cutting width of 4 mm and an effective cutting edge length of 2 mm, the insert has two cutting edges and a corner radius of 2 mm. It is made from a carbide PVD grade and has a neutral insert hand. The insert is suitable for machining steel, stainless steel, and superalloys and titanium. It is also partially applicable for cast irons, non-ferrous metals, and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
