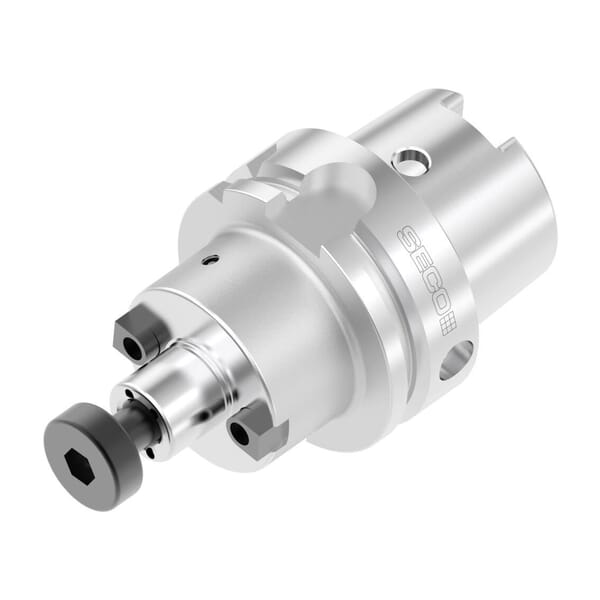

Seco 03301675 Series 1-Hole Shell Mill Holder With Through Coolant Channels SK SM
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsSeco 03301675 Series 1-Hole Shell Mill Holder With Through Coolant Channels SK SM
ManufacturerSeco
Part #288501675
MFG #03301675
Seco Shell Mill Holder, 1-Hole, Series: SM Series, Tapered Shank, HSKA100 Taper, 118.3 mm Overall Length, 57.2 mm Overall Diameter, 1 in Shank Connection, ANSI Code: HSKA100-SM1.000-2.000-L1, System Size Machine Side: HSKA100
$325.83
 / EAKnowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Seco ToolsANSI Code:Â HSKA100-SM1.000-2.000-L1Country of Origin:Â CN, SEManufacturer Name:Â Seco ToolsOverall Diameter:Â 57.2 mmOverall Length:Â 118.3 mmSeries:Â SM SeriesShank Connection Size:Â 1 inShank Type:Â Taper, TaperedSystem Size Machine Side:Â HSKA100Taper Size:Â HSKA100Type:Â 1-Hole
- Direct run-out 5 um maximum
- With coolant supply channels through the spigot
- Tool holder HSKA100-SM1.000-2.000-L1, HSK A100, Shell Mill Holders Conventional, 1 inch shank dia The Tool holder HSKA100-SM1.000-2.000-L1 features an expanded offering that ensures a comprehensive range of milling toolholding solutions. It includes an anti-rust solution with new shot-peened surfaces and side lock holders improved with front-face lubrication and a Seco [R]-Weldon grinded face. The machine-side connection is HSK-A100. This shell mill holder is of the conventional type with a shank diameter of 1 inch and a functional length of 2 inches. Many customers face challenges with side lock holder performance in hard materials. The main feature of this tool holder is the improved side lock holder with front-face lubrication and Seco [R]-Weldon grinded face, enhancing performance in demanding conditions. The tool holder offers better side lock holder performance in hard materials due to front-face lubrication and an increased range (type B) for shell mill holders. These benefits contribute to improved reliability and versatility in milling operations. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
- Manufacturer Name:Â Seco ToolsANSI Code:Â HSKA100-SM1.000-2.000-L1Country of Origin:Â CN, SEManufacturer Name:Â Seco ToolsOverall Diameter:Â 57.2 mmOverall Length:Â 118.3 mmSeries:Â SM SeriesShank Connection Size:Â 1 inShank Type:Â Taper, TaperedSystem Size Machine Side:Â HSKA100Taper Size:Â HSKA100Type:Â 1-Hole
- Direct run-out 5 um maximum
- With coolant supply channels through the spigot
- Tool holder HSKA100-SM1.000-2.000-L1, HSK A100, Shell Mill Holders Conventional, 1 inch shank dia The Tool holder HSKA100-SM1.000-2.000-L1 features an expanded offering that ensures a comprehensive range of milling toolholding solutions. It includes an anti-rust solution with new shot-peened surfaces and side lock holders improved with front-face lubrication and a Seco [R]-Weldon grinded face. The machine-side connection is HSK-A100. This shell mill holder is of the conventional type with a shank diameter of 1 inch and a functional length of 2 inches. Many customers face challenges with side lock holder performance in hard materials. The main feature of this tool holder is the improved side lock holder with front-face lubrication and Seco [R]-Weldon grinded face, enhancing performance in demanding conditions. The tool holder offers better side lock holder performance in hard materials due to front-face lubrication and an increased range (type B) for shell mill holders. These benefits contribute to improved reliability and versatility in milling operations. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
