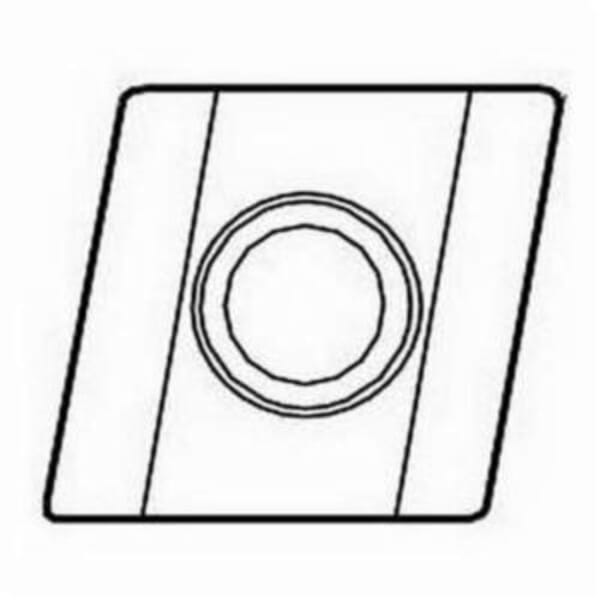

Name: Seco 00000829 Turning Insert, ANSI Code: CCGT09T304 03G3, CCGT Insert, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: 03G3
Brand: Seco Tools
SKU: Seco_012628
Availability: OutOfStock

Seco Tools

Seco 00000829 Turning Insert, ANSI Code: CCGT09T304 03G3, CCGT Insert, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: 03G3

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Seco Tools

Seco 00000829 Turning Insert, ANSI Code: CCGT09T304 03G3, CCGT Insert, 09T304 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, Carbide, Manufacturers Grade: 03G3

ManufacturerSeco

Part #288500829

MFG #00000829

Seco Turning Insert, CCGT Insert, 09T304 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 4.4 mm Hole Dia, Manufacturers Grade: 03G3, ANSI Code: CCGT09T304 03G3, ISO Code: CCGT09T304 03G3, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

: Manufacturer Name: Seco Tools
ANSI Code: CCGT09T304 03G3
Chipbreaker: F1
Corner Radius: 0.4 mm
Country of Origin: FR, JP
Cutting Direction: Neutral
Finish: Uncoated
Hole Diameter: 4.4 mm
Included Angle: 80 deg
Inscribed Circle: 9.5 mm
Insert Size: 09T304
Insert Style: CCGT
ISO Code: CCGT09T304 03G3
Manufacturer Name: Seco Tools
Manufacturers Grade: 03G3
Material: Carbide
Maximum Depth of Cut: 3.5 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 09
Shape: Diamond
Thickness: 3.97 mm
: The Turning insert CCGT09T304 03G3 features a clearance angle major of 7 degrees and a positive type geometry. It is made from coated carbide with grade 03G3. The insert has two cutting edges and a corner radius of 0.4 mm. With a cutting edge effective length of 9.5 mm, the insert is designed with a neutral hand orientation. It is primarily intended for non-ferrous materials and is partially applicable for superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link

: Manufacturer Name: Seco Tools
ANSI Code: CCGT09T304 03G3
Chipbreaker: F1
Corner Radius: 0.4 mm
Country of Origin: FR, JP
Cutting Direction: Neutral
Finish: Uncoated
Hole Diameter: 4.4 mm
Included Angle: 80 deg
Inscribed Circle: 9.5 mm
Insert Size: 09T304
Insert Style: CCGT
ISO Code: CCGT09T304 03G3
Manufacturer Name: Seco Tools
Manufacturers Grade: 03G3
Material: Carbide
Maximum Depth of Cut: 3.5 mm
Rake: Positive
Relief Angle: 7 deg
Seat Size: 09
Shape: Diamond
Thickness: 3.97 mm
: The Turning insert CCGT09T304 03G3 features a clearance angle major of 7 degrees and a positive type geometry. It is made from coated carbide with grade 03G3. The insert has two cutting edges and a corner radius of 0.4 mm. With a cutting edge effective length of 9.5 mm, the insert is designed with a neutral hand orientation. It is primarily intended for non-ferrous materials and is partially applicable for superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
: Catalog
Video Link
