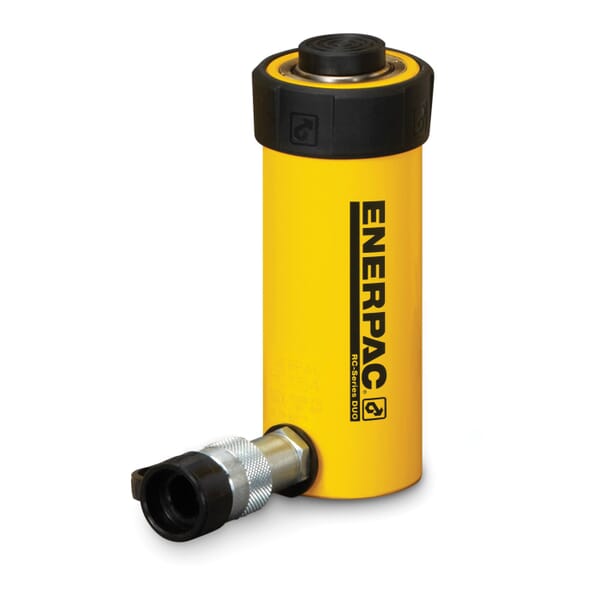

Enerpac RC-104 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 4.13 in L Stroke, 6-3/4 in H Retract, 1-1/2 in Dia Rod, 700 bar

ManufacturerEnerpac

Part #283530080

MFG #RC104

UPC #662005300808

Enerpac Hydraulic Cylinder, DUO General Purpose Single Acting, Series: RC, 10 ton, 1.69 in Dia Bore, 4.13 in Stroke, 6-3/4 in H Retract, Base Mount, 1-1/2 in Rod Dia, 700 bar, Alloy Steel Housing, Baked Enamel, 2-1/4 in OD

Price Not Available

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Enerpac

Bore Size: 1.69 in Dia

Capacity: 10 ton

Country of Origin: CN

Dimensions: 2-1/4 in OD

Finish: Baked Enamel

Housing Material: Alloy Steel

Manufacturer Name: Enerpac

Mounting Type: Base

Pressure Rating: 700 bar

Retract: 6-3/4 in H

Rod Diameter: 1-1/2 in

Series: RC

Stroke Length: 4.13 in

Type: DUO General Purpose Single Acting

Enerpac RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
Unique GR2 bearing design, reduces wear, extending life
Collar threads, plunger threads and base mounting holes enable easy fixturing
Designed for use in all positions
High strength alloy steel for durability
Redesigned cylinder thread protector for ease of use
Heavy duty, pretensioned spring improves retraction speed
Baked enamel finish for increased corrosion resistance
Plunger wiper reduces contamination, extending cylinder life

CR-400 Coupler and Dust Cap

For safe disposal of old gas cylinders with hydraulic punch set, safely releasing furnace bricks from a steel fixture, removing the wheel studs on a Caterpillar 777 dump truck and repairing the foundation of tilting silo with steel piers
