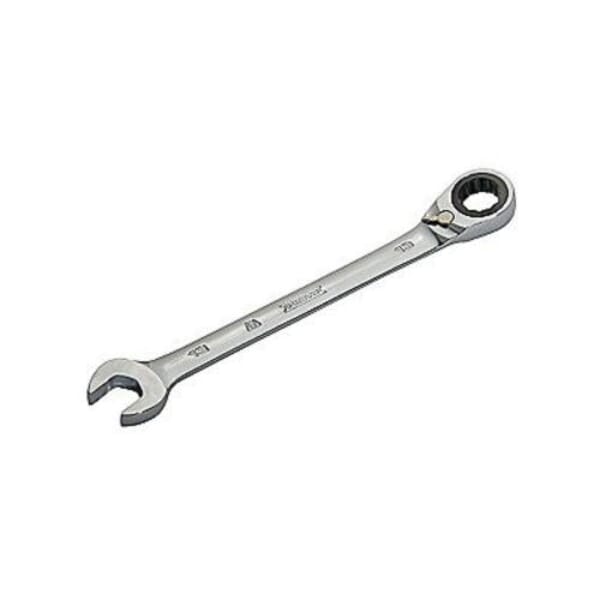

Name: Proto JSCVM24T Reversible Spline Combination Wrench, 24 mm, 12 Points, 15 deg Offset, 12-3/4 in OAL, Forged Steel, Full Polished, ASME Specified
Brand: Stanley Black & Decker
SKU: IDW_16730603
Availability: OutOfStock

Stanley Black & Decker

Proto JSCVM24T Reversible Spline Combination Wrench, 24 mm, 12 Points, 15 deg Offset, 12-3/4 in OAL, Forged Steel, Full Polished, ASME Specified

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

Stanley Black & Decker

Proto JSCVM24T Reversible Spline Combination Wrench, 24 mm, 12 Points, 15 deg Offset, 12-3/4 in OAL, Forged Steel, Full Polished, ASME Specified

ManufacturerProto

Part #267911478

MFG #JSCVM24T

UPC #662679114787

Proto Combination Wrench, Reversible Spline, Measurement System: Metric, Ratcheting Wrench, 24 mm Wrench Opening, 12 Points, 72 Geared Teeth, 12-3/4 in Overall Length, 15 deg Offset, 2-1/16 in Open End Width, 1/4 in Open End Thickness, 1-13/16 in Box End Width, 1/4 in Box End Thickness, Specifications Met: ASME Specified, Forged Steel, Full Polished

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Stanley Black & Decker

Box End Thickness: 1/4 in

Box End Width: 1-13/16 in

Country of Origin: TW

Finish/Coating: Full Polished

Manufacturer Name: Stanley Black & Decker

Material: Forged Steel

Measurement System: Metric

Number of Geared Teeth: 72

Number of Points: 12

Offset Angle: 15 deg

Open End Thickness: 1/4 in

Open End Width: 2-1/16 in

Overall Length: 12-3/4 in

Specifications Met: ASME Specified

Type: Reversible Spline

Wrench Opening: 24 mm

Wrench Type: Ratcheting

Metric spline wrenches can be used on metric 4, 6, 12 point, spline and Torx fasteners
The chrome vanadium switch lever allows for easy changes in turning direction which helps improve speed
15 deg angled offset box end helps keep shank clear of obstructions
Anti-slip design (ASD) open end
Full polish finish provides corrosion resistance and easy to clean surfaces
Box end is countersunk for easy application to the fastener
Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
The high contact surface area which is away from fastener points enables turning of highly rounded fasteners

Proto Combination Wrench, Reversible Spline, Measurement System: Metric, Ratcheting Wrench, 24 mm Wrench Opening, 12 Points, 72 Geared Teeth, 12-3/4 in Overall Length, 15 deg Offset, 2-1/16 in Open End Width, 1/4 in Open End Thickness, 1-13/16 in Box End Width, 1/4 in Box End Thickness, Specifications Met: ASME Specified, Forged Steel, Full Polished

Manufacturer Name: Stanley Black & Decker

Box End Thickness: 1/4 in

Box End Width: 1-13/16 in

Country of Origin: TW

Finish/Coating: Full Polished

Manufacturer Name: Stanley Black & Decker

Material: Forged Steel

Measurement System: Metric

Number of Geared Teeth: 72

Number of Points: 12

Offset Angle: 15 deg

Open End Thickness: 1/4 in

Open End Width: 2-1/16 in

Overall Length: 12-3/4 in

Specifications Met: ASME Specified

Type: Reversible Spline

Wrench Opening: 24 mm

Wrench Type: Ratcheting

Metric spline wrenches can be used on metric 4, 6, 12 point, spline and Torx fasteners
The chrome vanadium switch lever allows for easy changes in turning direction which helps improve speed
15 deg angled offset box end helps keep shank clear of obstructions
Anti-slip design (ASD) open end
Full polish finish provides corrosion resistance and easy to clean surfaces
Box end is countersunk for easy application to the fastener
Spline design was created for use with specialty spline bolts which are used when weight and size of bolt heads must be minimized
Spline design enables the wrench to contact conventional fasteners away from the corners, which applies force over a larger area, reducing risk of fastener scoring and helps prevent rounding of the corners and other fasteners damage that could lead to foreign object damage (FOD)
The high contact surface area which is away from fastener points enables turning of highly rounded fasteners

Proto Combination Wrench, Reversible Spline, Measurement System: Metric, Ratcheting Wrench, 24 mm Wrench Opening, 12 Points, 72 Geared Teeth, 12-3/4 in Overall Length, 15 deg Offset, 2-1/16 in Open End Width, 1/4 in Open End Thickness, 1-13/16 in Box End Width, 1/4 in Box End Thickness, Specifications Met: ASME Specified, Forged Steel, Full Polished
