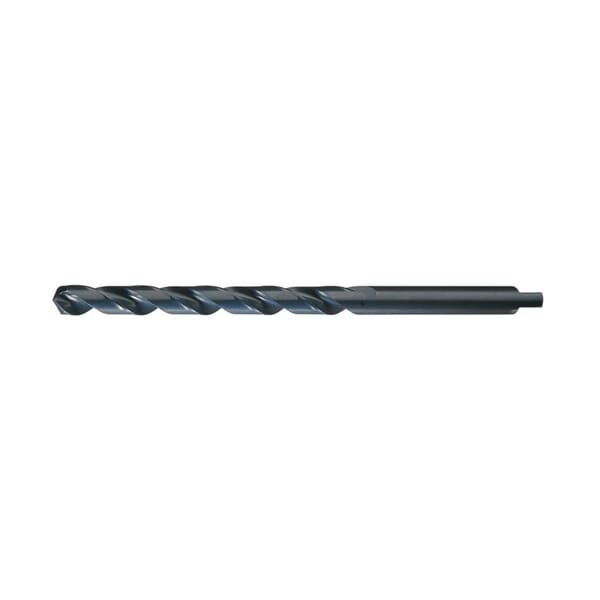

Chicago-Latrobe 49517 255AN General Purpose Taper Length Drill, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, 6-1/4 in OAL, HSS, Black Oxide

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Greenfield Industries

Chicago-Latrobe 49517 255AN General Purpose Taper Length Drill, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, 6-1/4 in OAL, HSS, Black Oxide

ManufacturerChicago-Latrobe

Part #234749517

MFG #49517

UPC #662355495179

Chicago-Latrobe Taper Length Drill, General Purpose, Series: 255AN, 17/64 in Drill - Fraction, 0.2656 in Drill - Decimal Inch, 6-1/4 in Overall Length, 3-7/16 in Cutting Depth, 2 Flutes, Spiral Flute, 3-7/16 in Flute Length, 17/64 in Shank, Tanged Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Black Oxide, Applicable Materials: Alloy Steel, Carbon Steel and Cast Iron

$13.99

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Greenfield Industries

Applicable Materials: Alloy Steel, Carbon Steel and Cast Iron

Country of Origin: US

Cutting Depth: 3-7/16 in

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Size - Decimal Inch: 0.2656 in

Drill Size - Fraction: 17/64 in

Finish: Black Oxide

Flute Length: 3-7/16 in

Flute Type: Spiral

Manufacturer Name: Greenfield Industries

Material: HSS

Number of Flutes: 2

Overall Length: 6-1/4 in

Point Angle: 118 deg

Point Type: Radial

Series: 255AN

Shank Size: 17/64 in

Shank Type: Tanged

Type: General Purpose

General purpose geometry conforming to automotive industry standards
Tanged shank for use with positive split sleeve drivers
Taper length provides longer overall length and flute length for deeper drilling
Black oxide surface treatment increases wear resistance and improves chip flow
-0.001 in drill diameter tolerance
+/-0.125 in overall length tolerance
+/-0.125 in flute length tolerance
+/-5 deg point angle tolerance

Automotive Applications

ASME/USCTI Standard

Catalog

Manufacturer Name: Greenfield Industries

Applicable Materials: Alloy Steel, Carbon Steel and Cast Iron

Country of Origin: US

Cutting Depth: 3-7/16 in

Cutting Direction: Right Hand

Cutting Edge Material: HSS

Drill Size - Decimal Inch: 0.2656 in

Drill Size - Fraction: 17/64 in

Finish: Black Oxide

Flute Length: 3-7/16 in

Flute Type: Spiral

Manufacturer Name: Greenfield Industries

Material: HSS

Number of Flutes: 2

Overall Length: 6-1/4 in

Point Angle: 118 deg

Point Type: Radial

Series: 255AN

Shank Size: 17/64 in

Shank Type: Tanged

Type: General Purpose

General purpose geometry conforming to automotive industry standards
Tanged shank for use with positive split sleeve drivers
Taper length provides longer overall length and flute length for deeper drilling
Black oxide surface treatment increases wear resistance and improves chip flow
-0.001 in drill diameter tolerance
+/-0.125 in overall length tolerance
+/-0.125 in flute length tolerance
+/-5 deg point angle tolerance

Automotive Applications

ASME/USCTI Standard

Catalog
