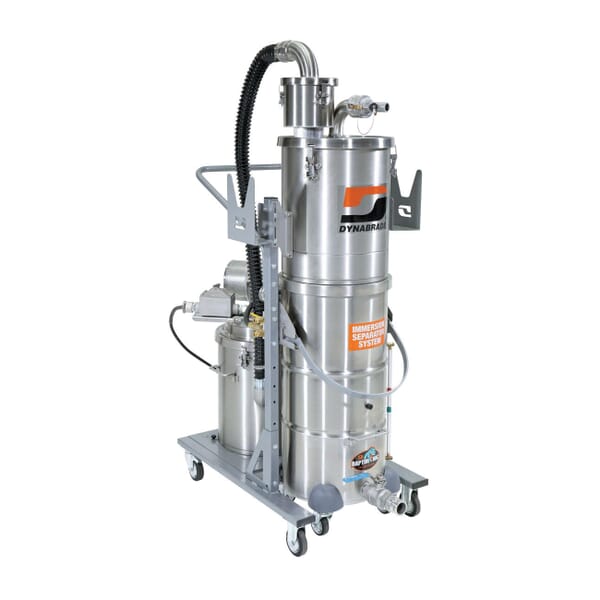

Dynabrade 61461 Raptor Vac Electric Portable Vacuum System, 20 A, 7.9 gal Tank, 1000 W Power Rating, 120 V AC
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsDynabrade 61461 Raptor Vac Electric Portable Vacuum System, 20 A, 7.9 gal Tank, 1000 W Power Rating, 120 V AC
ManufacturerDynabrade
Part #134061461
MFG #61461
UPC #616026614611
Dynabrade Vacuum System, Electric Portable, Series: Raptor Vac, 7.9 gal Tank, 1000 W, 120 V AC, 20 A, 90 psi Static Pressure, 75 dB, 30 in L x 46 in W x 70 in H
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â DynabradeAmperage Rating:Â 20 ACountry of Origin:Â CADimensions:Â 30 in L x 46 in W x 70 in HManufacturer Name:Â DynabradePower Rating:Â 1000 WSeries:Â Raptor VacSound Level:Â 75 dBStatic Pressure:Â 90 psiTank Capacity:Â 7.9 galType:Â Electric PortableVoltage Rating:Â 120 V AC, 120 VAC
Two 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y-Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, - 3/4 in x 25 ft (19 mm x 7.6 m) Conductive Air Line Supply
- Electric portable vacuum with division 1 Immersion separator for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys
- Collects maximum of 22 lbs (10 kg) of dust
- Legally certified as explosion-proof and dust ignition-proof
- Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil renders hazardous dusts inert
- Recovery capacity of 22 lbs (10 kg) of dust into 7.9 gal(30 liters) of neutralizing liquid
- Includes HEPA H14 filter with 99.995% efficiency on 0.3 micron
- Filter is located downstream of the motor
- For safe recovery of combustible-conductive dusts
- Renders hazardous dusts inert using mineral oil as neutralizing liquid
- Stainless steel recovery tank (SAE 304)
- Easy one-click detaching and connecting of tank
- Unit is static-dissipating and conductive (includes 96608 conductive cleaning kit)
- Aerosol leak tested for quality assurance
- Equipped with easy-glide cart and tool basket
- Dynabrade recommends the use of mineral oil with viscosity of 10.5 cost
- Connect two tools simultaneously
- Vacuum for use in group D - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode, group E - Atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys, group F - Atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust, group G - Atmospheres, containing wood and plastic dusts
- Vacuum for use in: Group D: atmospheres, containing flammable gas, flammable
- Two 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y-Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, - 3/4 in x 25 ft (19 mm x 7.6 m) Conductive Air Line Supply
- Designed for use in - Class I, Division I, Group D T3C, Class II, Division I, Groups E, F and G, Hazardous Locations as defined in the National Electric Code (NFPA 70|European Certifications - ATEX, Third Party Certified|CE EX II 2 GD, EX d IIA T3 Gb, Ex t IIIC T 200 deg C Db IP 6X
- Dynabrade Vacuum System, Electric Portable, Series: Raptor Vac, 7.9 gal Tank, 1000 W, 120 V AC, 20 A, 90 psi Static Pressure, 75 dB, 30 in L x 46 in W x 70 in H
- Manufacturer Name:Â DynabradeAmperage Rating:Â 20 ACountry of Origin:Â CADimensions:Â 30 in L x 46 in W x 70 in HManufacturer Name:Â DynabradePower Rating:Â 1000 WSeries:Â Raptor VacSound Level:Â 75 dBStatic Pressure:Â 90 psiTank Capacity:Â 7.9 galType:Â Electric PortableVoltage Rating:Â 120 V AC, 120 VAC
Two 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y-Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, - 3/4 in x 25 ft (19 mm x 7.6 m) Conductive Air Line Supply
- Electric portable vacuum with division 1 Immersion separator for use on metallic surfaces such as aluminum, magnesium, titanium, commercial alloys
- Collects maximum of 22 lbs (10 kg) of dust
- Legally certified as explosion-proof and dust ignition-proof
- Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil renders hazardous dusts inert
- Recovery capacity of 22 lbs (10 kg) of dust into 7.9 gal(30 liters) of neutralizing liquid
- Includes HEPA H14 filter with 99.995% efficiency on 0.3 micron
- Filter is located downstream of the motor
- For safe recovery of combustible-conductive dusts
- Renders hazardous dusts inert using mineral oil as neutralizing liquid
- Stainless steel recovery tank (SAE 304)
- Easy one-click detaching and connecting of tank
- Unit is static-dissipating and conductive (includes 96608 conductive cleaning kit)
- Aerosol leak tested for quality assurance
- Equipped with easy-glide cart and tool basket
- Dynabrade recommends the use of mineral oil with viscosity of 10.5 cost
- Connect two tools simultaneously
- Vacuum for use in group D - Atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode, group E - Atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys, group F - Atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust, group G - Atmospheres, containing wood and plastic dusts
- Vacuum for use in: Group D: atmospheres, containing flammable gas, flammable
- Two 20 ft (6 m) Conductive Coaxial Hoses with Integrated Air Lines, Y-Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, - 3/4 in x 25 ft (19 mm x 7.6 m) Conductive Air Line Supply
- Designed for use in - Class I, Division I, Group D T3C, Class II, Division I, Groups E, F and G, Hazardous Locations as defined in the National Electric Code (NFPA 70|European Certifications - ATEX, Third Party Certified|CE EX II 2 GD, EX d IIA T3 Gb, Ex t IIIC T 200 deg C Db IP 6X
- Dynabrade Vacuum System, Electric Portable, Series: Raptor Vac, 7.9 gal Tank, 1000 W, 120 V AC, 20 A, 90 psi Static Pressure, 75 dB, 30 in L x 46 in W x 70 in H
