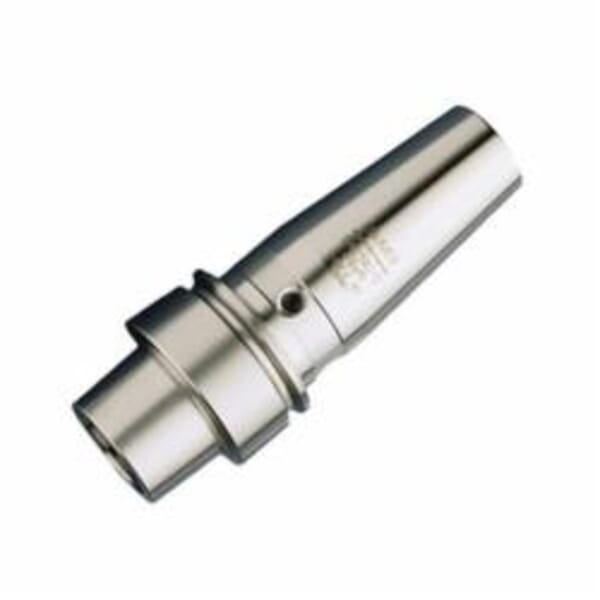

Haimer E32.140.04 Standard Short Shrink Fit Chuck, Tapered Shank, HSKE32 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129503671

MFG #E32.140.04

UPC #4034221031938

Haimer Shrink Fit Chuck, Standard Short, System Size Machine Side: HSKE32, 4 mm Diameter Hole, Tapered Shank, 10 mm Diameter Nose, 60 mm Projection, For Use With: HSS and Solid Carbide Tools, 12 mm Clamping Length, No Through Coolant

$415.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 12 mm

Hole Diameter: 4 mm

Nose Diameter: 10 mm

Projection: 60 mm

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: HSKE32

Through Coolant (Yes/No): No

Type: Standard Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
More accurate than DIN
Heat resistant hot working steel
Hardened 54-2 HRC
Shank tolerance h6
Short chamfer
Dynamic form, reinforced shank at long tool holders, compromise between slimness (marginal interference contour) and rigidity
Threaded bores for simple and fast balancing with screws
Without back-up screw, without threads for balancing screws, with slits along the clamping bore for cooling from outside

DIN 69893-5
