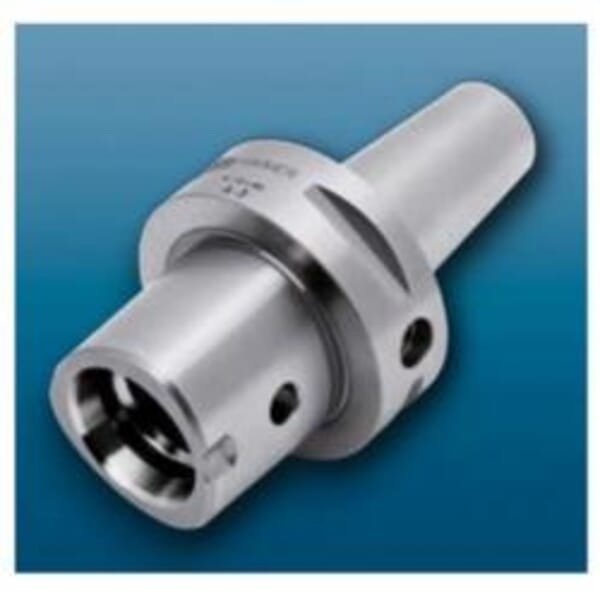

Haimer CC6.140.1/4Z.00 Basic Short Shrink Fit Chuck, Modular Connection Shank, Capto C6 Machine Side, For Use With Shrink Fit Unit, Turning and Milling Centre

ManufacturerHaimer

Part #129503479

MFG #CC6.140.1/4Z.00

Haimer Shrink Fit Chuck, Basic Short, System Size Machine Side: Capto C6, 1/4 in Diameter Hole, Modular Connection Shank, 0.83 in Diameter Nose, 3.15 in Projection, For Use With: Shrink Fit Unit, Turning and Milling Centre, 1.06 in Body Diameter Workpiece Side, 1.42 in Clamping Length, Yes Through Coolant

$612.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 1.06 in

Clamping Length: 1.42 in

Hole Diameter: 1/4 in

Nose Diameter: 0.83 in

Projection: 3.15 in

Shank Type: Modular Connection

Suitable For Use With: Shrink Fit Unit, Turning and Milling Centre

System Size Machine Side: Capto C6

Through Coolant (Yes/No): Yes

Type: Basic Short

Back-Up Screw

Balanced to G2.5 at 25000 rpm or ULess than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces precision ground
More accurate than DIN
Interface with a unique tapered polygon and flange location face
Exact positioning in the circumferential direction
Highest runout accuracy, torque and rigidity
Innovative modular tool system with highest precision
Dynamic form, reinforced shank at long tool holders, compromise between slimness (marginal interference contour) and rigidity
Threaded bores for simple and fast balancing with screws
Cool jet bores that can be sealed included

Back-Up Screw
