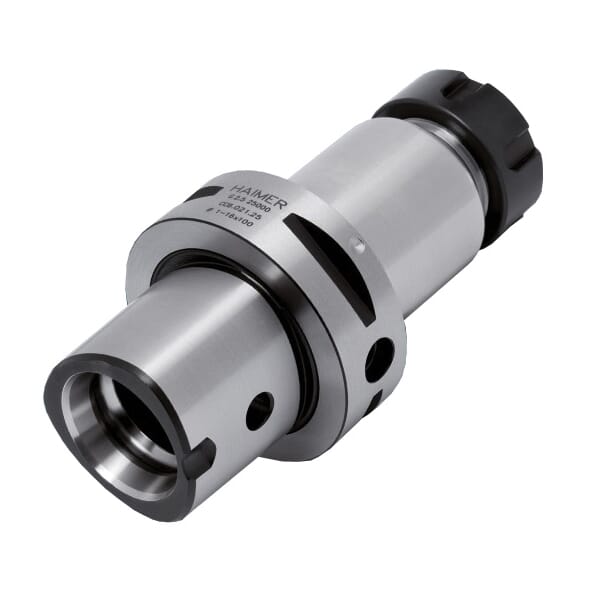

Haimer CC6.022.25 Oversized Collet Chuck, PSC Taper Shank, C6 Modular Connection, ER25 Collet System, ER25 Chuck

ManufacturerHaimer

Part #129503447

MFG #CC6.022.25

UPC #4034221069399

Haimer Collet Chuck, Oversized, 1.65 in Diameter Nose, 6.3 in Head Length/Projection, C6 Modular Connection, ER25 Collet System, PSC Taper Shank, ER25 Chuck, 1.65 in Diameter Collet Nut, No Through Coolant

$872.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Chuck Size: ER25

Collet Nut Diameter: 1.65 in

Collet System: ER25

Country of Origin: DE

Head Length/Projection: 6.3 in

Manufacturer Name: Haimer

Modular Connection Size: C6

Nose Diameter: 1.65 in

Shank Type: Capto, PSC Taper

Through Coolant (Yes/No): No

Type: Oversized

Balanced to G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces precision ground
Fine balanced ER nut
High runout accuracy
More accurate than DIN

Locknut

Haimer Collet Chuck, Oversized, 1.65 in Diameter Nose, 6.3 in Head Length/Projection, C6 Modular Connection, ER25 Collet System, PSC Taper Shank, ER25 Chuck, 1.65 in Diameter Collet Nut, No Through Coolant

ISO 26623|ISO 15488

Locknut

Catalog

Manufacturer Name: Haimer

Chuck Size: ER25

Collet Nut Diameter: 1.65 in

Collet System: ER25

Country of Origin: DE

Head Length/Projection: 6.3 in

Manufacturer Name: Haimer

Modular Connection Size: C6

Nose Diameter: 1.65 in

Shank Type: Capto, PSC Taper

Through Coolant (Yes/No): No

Type: Oversized

Balanced to G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces precision ground
Fine balanced ER nut
High runout accuracy
More accurate than DIN

Locknut

Haimer Collet Chuck, Oversized, 1.65 in Diameter Nose, 6.3 in Head Length/Projection, C6 Modular Connection, ER25 Collet System, PSC Taper Shank, ER25 Chuck, 1.65 in Diameter Collet Nut, No Through Coolant

ISO 26623|ISO 15488

Locknut

Catalog
