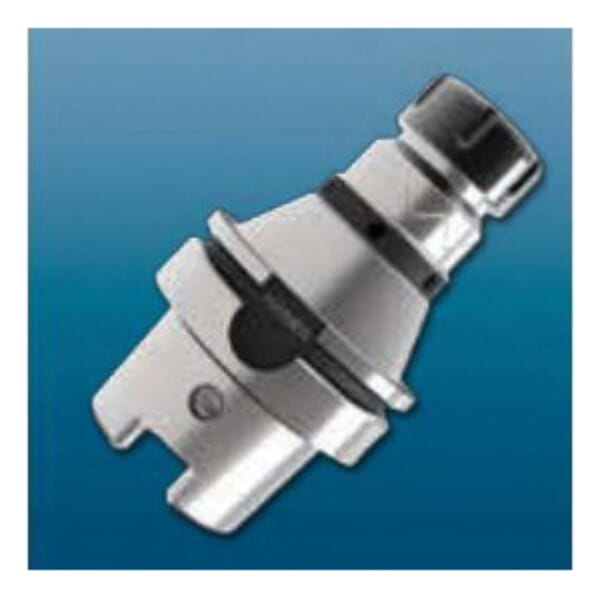

Name: Haimer A80.029.32.3.2022 Oversized Power Collet Chuck, Tapered Shank, ER32 Collet System, ER32 Chuck
Brand: Haimer
SKU: HAIMER_Q1_18_000319
Availability: OutOfStock

Haimer

Haimer A80.029.32.3.2022 Oversized Power Collet Chuck, Tapered Shank, ER32 Collet System, ER32 Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer A80.029.32.3.2022 Oversized Power Collet Chuck, Tapered Shank, ER32 Collet System, ER32 Chuck

ManufacturerHaimer

Part #129503382

MFG #A80.029.32.3.2022

Haimer Power Collet Chuck, Oversized, 1.97 in Diameter Nose, 6.3 in Head Length/Projection, ER32 Collet System, Tapered Shank, ER32 Chuck, HSK80A Taper, 1.97 in Diameter Collet Nut

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Chuck Size: ER32

Collet Nut Diameter: 1.97 in

Collet System: ER32

Country of Origin: DE

Head Length/Projection: 6.3 in

Manufacturer Name: Haimer

Nose Diameter: 1.97 in

Shank Type: Tapered

Taper Size: HSK80A

Type: Oversized

Dual face contact
Balanced to G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces precision ground
High runout accuracy - 3 um at 3XD with Haimer power collets
High rigidity
Smoother running thanks to vibration absorbing geometry, therefore better surface quality and protection of tools, spindles and machines
Increased machining capacity due to higher spindle speeds, higher feed rates and larger cutting depths
Shorter processing times, higher machining accuracy, high clamping force
Equally suited to high speed manufacturing and heavy milling
With threaded holes for balancing screws

DIN 69893-1|ISO 15488
