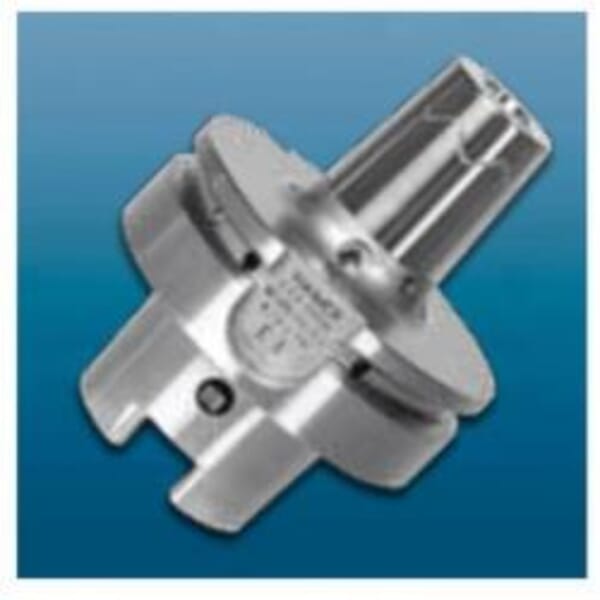

Name: Haimer A63/80.145.06.3 Ultra Short Power Shrink Fit Chuck, Tapered Shank, HSKA63/80 Machine Side
Brand: Haimer
SKU: Haimer_104484
Availability: OutOfStock

Haimer

Haimer A63/80.145.06.3 Ultra Short Power Shrink Fit Chuck, Tapered Shank, HSKA63/80 Machine Side

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer A63/80.145.06.3 Ultra Short Power Shrink Fit Chuck, Tapered Shank, HSKA63/80 Machine Side

ManufacturerHaimer

Part #129503338

MFG #A63/80.145.06.3

Haimer Power Shrink Fit Chuck, Ultra Short, System Size Machine Side: HSKA63/80, 6 mm Hole Dia, Tapered Shank, 22 mm Nose Dia, 70 mm Projection, 38 mm Clamping Length, Yes Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 38 mm

Country of Origin: DE

Hole Diameter: 6 mm

Manufacturer Name: Haimer

Nose Diameter: 22 mm

Projection: 70 mm

Shank Type: Tapered

System Size Machine Side: HSKA63/80

Through Coolant (Yes/No): Yes

Type: Ultra Short

Pocket for Data Chip

Dual face contact
Balanced to G2.5 at 33000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Highest cutting performance with higher spindle speeds, higher feeds and larger cutting depths
Shorter cycle times
Higher machining accuracy
With threaded holes for balancing screws
With thread for coolant tube

DIN 69893-1

Pocket for Data Chip

Catalog

Manufacturer Name: Haimer

Clamping Length: 38 mm

Country of Origin: DE

Hole Diameter: 6 mm

Manufacturer Name: Haimer

Nose Diameter: 22 mm

Projection: 70 mm

Shank Type: Tapered

System Size Machine Side: HSKA63/80

Through Coolant (Yes/No): Yes

Type: Ultra Short

Pocket for Data Chip

Dual face contact
Balanced to G2.5 at 33000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Highest cutting performance with higher spindle speeds, higher feeds and larger cutting depths
Shorter cycle times
Higher machining accuracy
With threaded holes for balancing screws
With thread for coolant tube

DIN 69893-1

Pocket for Data Chip

Catalog
