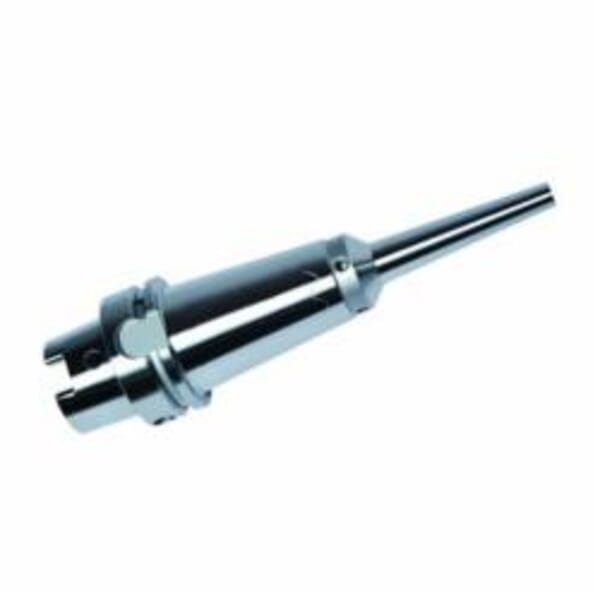

Haimer A63.184.16.8 Standard ZG130 Power Mini Shrink Fit Chuck, Tapered Shank, HSKA63 Machine Side, For Use With Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129503288

MFG #A63.184.16.8

UPC #4034221066244

Haimer Power Mini Shrink Fit Chuck, Standard ZG130, System Size Machine Side: HSKA63, 16 mm Diameter Hole, Tapered Shank, 24 mm Diameter Nose, 130 mm Projection, For Use With: Inductive Shrink Fit Unit, HSS and Solid Carbide Tools, 50 mm Clamping Length, Yes Through Coolant

$606.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 50 mm

Hole Diameter: 16 mm

Nose Diameter: 24 mm

Projection: 130 mm

Shank Type: Tapered

Suitable For Use With: Inductive Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA63

Through Coolant (Yes/No): Yes

Type: Standard ZG130

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Highest possible clamping force
3 deg slope at the top
With threaded holes for balancing screws

For fine machining and jobs very difficult to reach

DIN 69893-1
