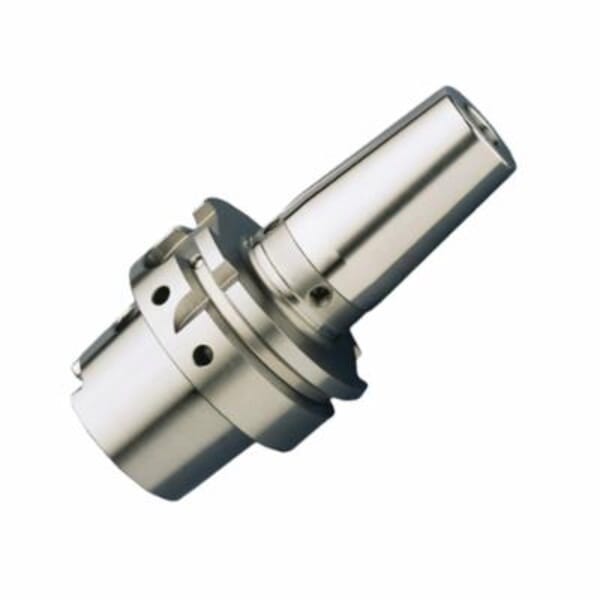

Haimer A63.140.1Z.4 Short Shrink Fit Chuck, Tapered Shank, HSKA63 Machine Side, For Use With Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129503043

MFG #A63.140.1Z.4

UPC #4034221091819

Haimer Shrink Fit Chuck, Short, System Size Machine Side: HSKA63, 1 in Hole Dia, Tapered Shank, 1.73 in Nose Dia, 4.53 in Projection, For Use With: Shrink Fit Unit, HSS and Solid Carbide Tools, 2.09 in Body Dia Workpiece Side, 2.28 in Clamping Length, Yes Through Coolant (Yes/No)

$377.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 2.09 in

Clamping Length: 2.28 in

Hole Diameter: 1 in

Manufacturer Name: Haimer

Nose Diameter: 1.73 in

Projection: 4.53 in

Shank Type: Tapered

Suitable For Use With: Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA63

Through Coolant (Yes/No): Yes

Type: Short

Heat resistant hot working steel
With threaded holes in order to balance with balancing screws
High runout accuracy (Less than 3 µm)
Extreme clamping torque by high pressing in the clamping bore
Short chamfer
Dynamic form reinforced shank at long tool holders
Compromise between slimness (marginal interference contour) and rigidity
Cool jet bores that can be sealed included
Cooling with cool flash for an extra charge

Back-Up Screw

DIN 69893-1
