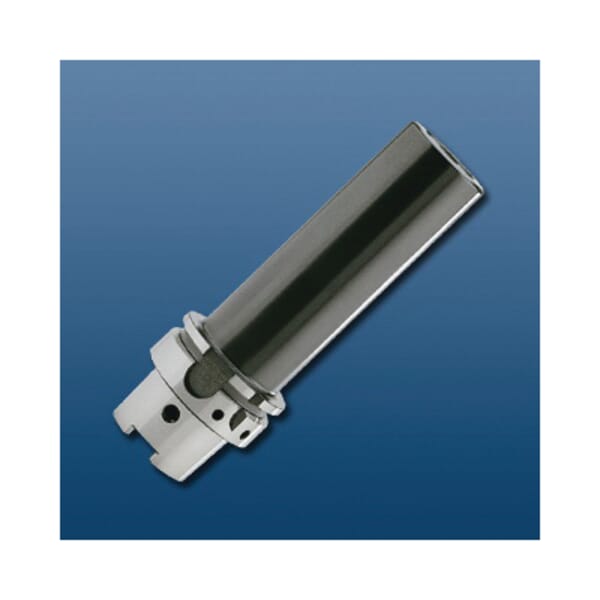

Haimer A63.130.02 Short Taper Adapter, #2 MT Dia Adapter/Shank, Tapered Shank, HSK-A63 Modular Connection, #2 MT Taper, 32 mm Dia Nose, 120 mm Projection
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Haimer A63.130.02 Short Taper Adapter, #2 MT Dia Adapter/Shank, Tapered Shank, HSK-A63 Modular Connection, #2 MT Taper, 32 mm Dia Nose, 120 mm Projection
ManufacturerHaimer
Part #129502998
MFG #A63.130.02
UPC #4034221026224
Haimer Taper Adapter, Short, HSK-A63 Modular Connection, #2 MT Diameter Adapter/Shank, Tapered Shank, #2 MT Taper, 32 mm Body Diameter Workpiece Side, 32 mm Diameter Nose, 120 mm Projection, System Size Machine Side: HSK-A63
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Haimer
Adapter/Shank Diameter:Â #2 MT
Body Diameter Workpiece Side:Â 32 mm
Modular Connection Size:Â HSK-A63
Nose Diameter:Â 32 mm
Projection:Â 120 mm
Shank Type:Â Tapered
System Size Machine Side:Â HSK-A63
Taper Size:Â #2 MT
Type:Â Short
Tightening Bolt
Balanced to G6.3 at 8000 rpm
All functional surfaces precision ground
For clamping tools with morse taper with drawbar thread according to DIN 228-1 form A
More accurate than DIN
Tightening Bolt
DIN 69893-1
For clamping tools with morse taper with drawbar thread
