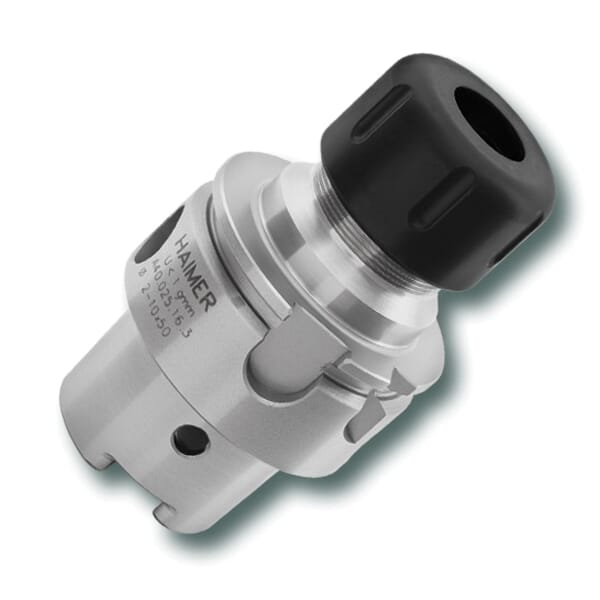

Name: Haimer A40.025.16.3 Ultra Short Power Collet Chuck, Tapered Shank, ER16 Collet System, ER16 Chuck
Brand: Haimer
SKU: HAIMER_Q1_18_000259
Availability: OutOfStock

Haimer

Haimer A40.025.16.3 Ultra Short Power Collet Chuck, Tapered Shank, ER16 Collet System, ER16 Chuck

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer A40.025.16.3 Ultra Short Power Collet Chuck, Tapered Shank, ER16 Collet System, ER16 Chuck

ManufacturerHaimer

Part #129502824

MFG #A40.025.16.3

UPC #4034221088796

Haimer Power Collet Chuck, Ultra Short, 1.1 in Diameter Nose, 1.97 in Head Length/Projection, ER16 Collet System, Tapered Shank, ER16 Chuck, HSK40A Taper, 1.1 in Diameter Collet Nut, Yes Through Coolant (Yes/No)

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Chuck Size: ER16

Collet Nut Diameter: 1.1 in

Collet System: ER16

Country of Origin: DE

Head Length/Projection: 1.97 in

Manufacturer Name: Haimer

Nose Diameter: 1.1 in

Shank Type: Tapered

Taper Size: HSK40A

Through Coolant (Yes/No): Yes

Type: Ultra Short

Dual face contact
Balanced to G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces precision ground
Accommodates all ER collets, Haimer power collets and Haimer Safe-Lock collets
High runout accuracy - 3 um at 3XD with Haimer power collets
High rigidity
Smoother running thanks to vibration absorbing geometry, therefore better surface quality and protection of tools, spindles and machines
Increased machining capacity due to higher spindle speeds, higher feed rates and larger cutting depths
Shorter processing times, higher machining accuracy, high clamping force
Equally suited to high speed manufacturing and heavy milling
Low tendency towards vibrations by rigid shank
High precision power collet with stabilization and concentration trough pilot of collet
Fine balanced power collet ER nut
More accurate than DIN
Coolant supply form ADB

For clamping tools with cylindrical shank in Haimer power collets and ER collets

DIN 69893-1|ISO 15488
