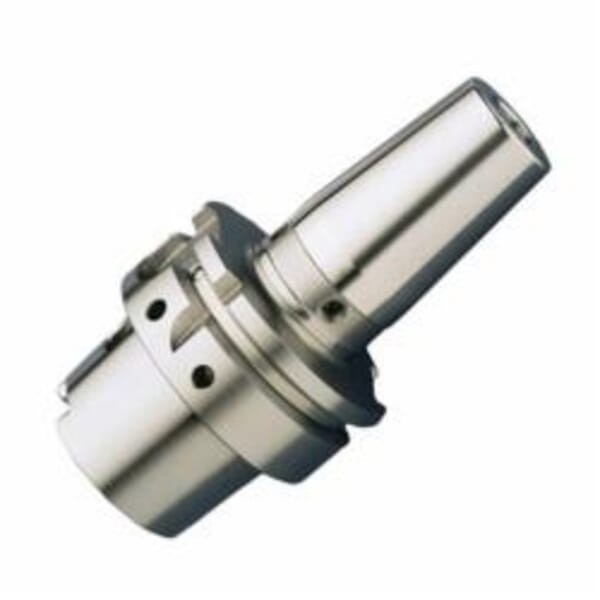

Haimer A32.140.04 Standard Short Shrink Fit Chuck, Tapered Shank, HSKA32 Machine Side, For Use With Shrink Fit Unit, HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129502804

MFG #A32.140.04

UPC #4034221031877

Haimer Shrink Fit Chuck, Standard Short, System Size Machine Side: HSKA32, 4 mm Diameter Hole, Tapered Shank, 10 mm Diameter Nose, 60 mm Projection, For Use With: Shrink Fit Unit, HSS and Solid Carbide Tools, 12 mm Clamping Length, No Through Coolant

$415.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 12 mm

Hole Diameter: 4 mm

Nose Diameter: 10 mm

Projection: 60 mm

Shank Type: Tapered

Suitable For Use With: Shrink Fit Unit, HSS and Solid Carbide Tools

System Size Machine Side: HSKA32

Through Coolant (Yes/No): No

Type: Standard Short

Dual face contact
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
Heat resistant hot working steel
Extreme clamping torque by high pressing in the clamping bore
Short chamfer
Dynamic form: reinforced shank at long tool holders
Threaded bores for simple and fast balancing with screws

DIN 69893-1
