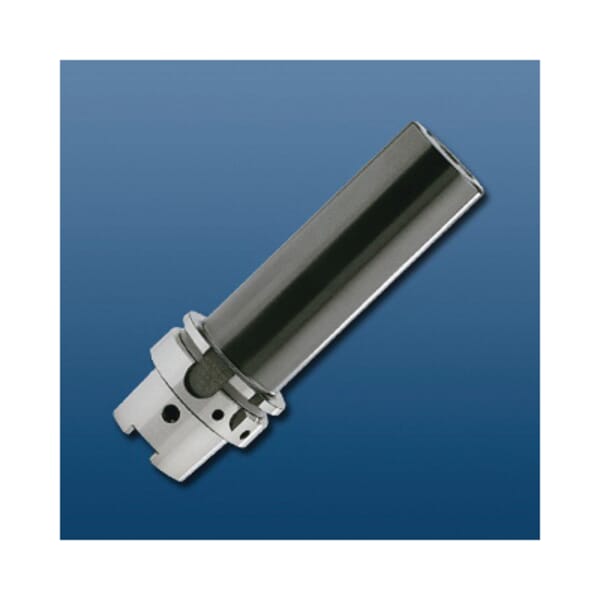

Haimer A10.130.04 Short Taper Adapter, #4 MT Dia Adapter/Shank, Tapered Shank, HSK-A100 Modular Connection, #4 MT Taper, 48 mm Dia Nose, 170 mm Projection

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer A10.130.04 Short Taper Adapter, #4 MT Dia Adapter/Shank, Tapered Shank, HSK-A100 Modular Connection, #4 MT Taper, 48 mm Dia Nose, 170 mm Projection

ManufacturerHaimer

Part #129502405

MFG #A10.130.04

UPC #4034221025739

Haimer Taper Adapter, Short, HSK-A100 Modular Connection Size, #4 MT, Tapered Shank, #4 MT Taper, 48 mm Body Dia Workpiece Side, 48 mm Nose Dia, 170 mm Projection, System Size Machine Side: HSK-A100

$538.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Adapter/Shank Diameter: #4 MT

Body Diameter Workpiece Side: 48 mm

Modular Connection Size: HSK-A100

Nose Diameter: 48 mm

Projection: 170 mm

Shank Type: Tapered

System Size Machine Side: HSK-A100

Taper Size: #4 MT

Type: Short

Tightening Bolt

Balanced to G6.3 at 8000 rpm
All functional surfaces precision ground
For holding tools with morse taper with thread according to DIN 228-1 form A
More accurate than DIN

For holding tools with morse taper with thread

Tightening Bolt

DIN 69893-1

Catalog

Manufacturer Name: Haimer

Adapter/Shank Diameter: #4 MT

Body Diameter Workpiece Side: 48 mm

Modular Connection Size: HSK-A100

Nose Diameter: 48 mm

Projection: 170 mm

Shank Type: Tapered

System Size Machine Side: HSK-A100

Taper Size: #4 MT

Type: Short

Tightening Bolt

Balanced to G6.3 at 8000 rpm
All functional surfaces precision ground
For holding tools with morse taper with thread according to DIN 228-1 form A
More accurate than DIN

For holding tools with morse taper with thread

Tightening Bolt

DIN 69893-1

Catalog
