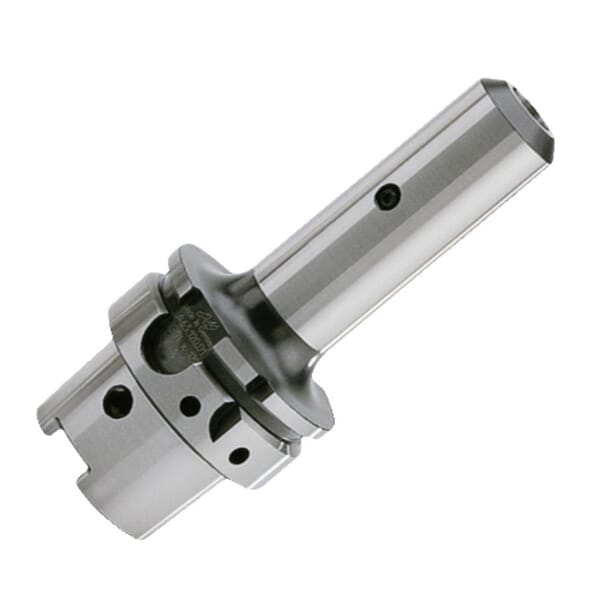

Haimer A10.122.02 High Precision Oversized Collet Chuck, Tapered Shank, HG02 Collet System, HG02 Chuck

ManufacturerHaimer

Part #129502400

MFG #A10.122.02

UPC #4034221014962

Haimer Collet Chuck, High Precision Oversized, 1.38 in Diameter Nose, 6.3 in Head Length/Projection, HG02 Collet System, Tapered Shank, HG02 Chuck, HSK100A Taper, No Through Coolant (Yes/No)

$759.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Chuck Size: HG02

Collet System: HG02

Head Length/Projection: 6.3 in

Nose Diameter: 1.38 in

Shank Type: Tapered

Taper Size: HSK100A

Through Coolant (Yes/No): No

Type: High Precision Oversized

Dual face contact
Balanced to G2.5 at 25000 rpm or ULess than 1 gmm
All functional surfaces precision ground
H6 shank tolerance
More accurate than DIN

Clamping Screw and Pull Out Hook

For high precise clamping of tools with cylindrical shank with special collets, shanks with clamping flats and very useful for high speed machining

DIN 69893-1
