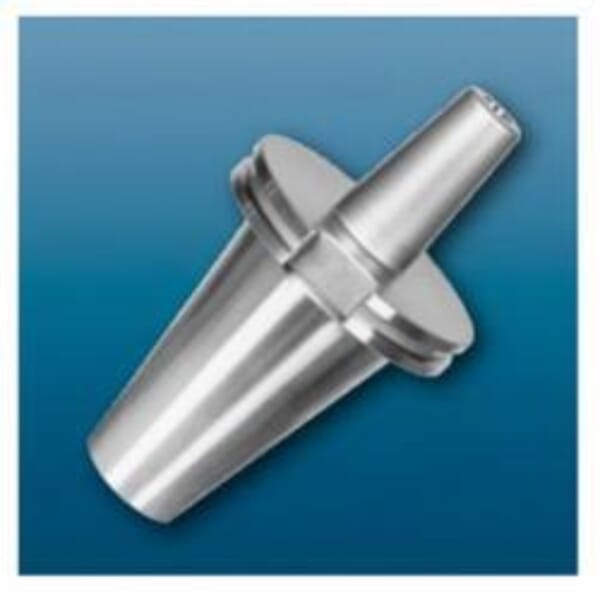

Haimer 50.840.5/8Z.00 Basic Short Shrink Fit Chuck, Tapered Shank, CAT50 Machine Side, For Use With HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 50.840.5/8Z.00 Basic Short Shrink Fit Chuck, Tapered Shank, CAT50 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129501570

MFG #50.840.5/8Z.00

Haimer Shrink Fit Chuck, Basic Short, System Size Machine Side: CAT50, 5/8 in Hole Dia, Tapered Shank, 1.06 in Nose Dia, 3.15 in Projection, For Use With: HSS and Solid Carbide Tools, 1.34 in Body Dia Workpiece Side, 1.97 in Clamping Length, Through Coolant: Yes

$370.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 1.34 in

Clamping Length: 1.97 in

Hole Diameter: 5/8 in

Nose Diameter: 1.06 in

Projection: 3.15 in

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: CAT50

Through Coolant (Yes/No): Yes

Type: Basic Short

Back-Up Screw

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form AD
Heat resistant hot working steel
H6 shank tolerance
Balanceable by rings, milling or drilling

Back-Up Screw

ASME B5.50

Catalog

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 1.34 in

Clamping Length: 1.97 in

Hole Diameter: 5/8 in

Nose Diameter: 1.06 in

Projection: 3.15 in

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: CAT50

Through Coolant (Yes/No): Yes

Type: Basic Short

Back-Up Screw

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form AD
Heat resistant hot working steel
H6 shank tolerance
Balanceable by rings, milling or drilling

Back-Up Screw

ASME B5.50

Catalog
