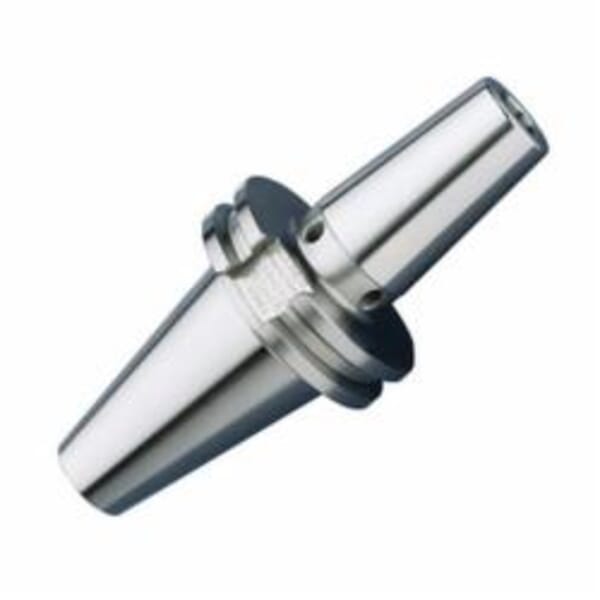

Haimer 50.840.16.4 Standard Short Shrink Fit Chuck With Cool Jet, Tapered Shank, CAT50 Machine Side, For Use With HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 50.840.16.4 Standard Short Shrink Fit Chuck With Cool Jet, Tapered Shank, CAT50 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129501541

MFG #50.840.16.4

UPC #4034221091017

Haimer Shrink Fit Chuck, Standard Short, System Size Machine Side: CAT50, 16 mm Hole Dia, Tapered Shank, 27 mm Nose Dia, 80 mm Projection, For Use With: HSS and Solid Carbide Tools, 34 mm Body Dia Workpiece Side, 50 mm Clamping Length, Yes Through Coolant (Yes/No)

$506.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 34 mm

Clamping Length: 50 mm

Hole Diameter: 16 mm

Nose Diameter: 27 mm

Projection: 80 mm

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: CAT50

Through Coolant (Yes/No): Yes

Type: Standard Short

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form adb
Heat resistant hot working steel
Hardened 54-2 HRC
H6 shank tolerance
With threaded holes in order to balance with balancing screws
Cool jet coolant bores that can be sealed included

ASME B5.50

Catalog
