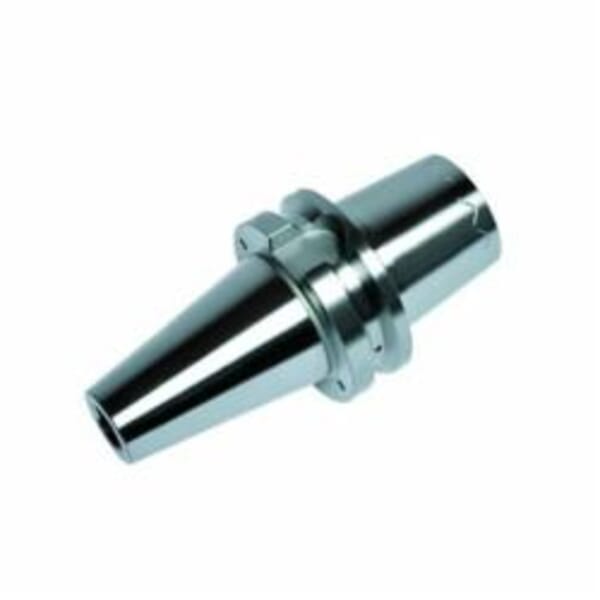

Haimer 50.656.25.67 Heavy Duty ZG200 Shrink Fit Chuck With Safe-Lock, Tapered Shank, BT50 Machine Side, For Use With HSS and Solid Carbide Tools

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 50.656.25.67 Heavy Duty ZG200 Shrink Fit Chuck With Safe-Lock, Tapered Shank, BT50 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129501468

MFG #50.656.25.67

UPC #4034221077967

Haimer Shrink Fit Chuck, Heavy Duty ZG200, System Size Machine Side: BT50, 25 mm Diameter Hole, Tapered Shank, 63 mm Diameter Nose, 200 mm Projection, For Use With: HSS and Solid Carbide Tools, 85 mm Body Diameter Workpiece Side, 58 mm Clamping Length, Yes Through Coolant

$1,731.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 85 mm

Clamping Length: 58 mm

Hole Diameter: 25 mm

Nose Diameter: 63 mm

Projection: 200 mm

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: BT50

Through Coolant (Yes/No): Yes

Type: Heavy Duty ZG200

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form adb
Smooth clamping of the tool shank
Reinforced outer contour
With dirt groove in the clamping bore
With threaded holes in order to balance with balancing screws
No deformation at the tool shank after shrink process
Cool jet bores that can be sealed included
Expansion grooves in the clamping bore

JIS B 6339
