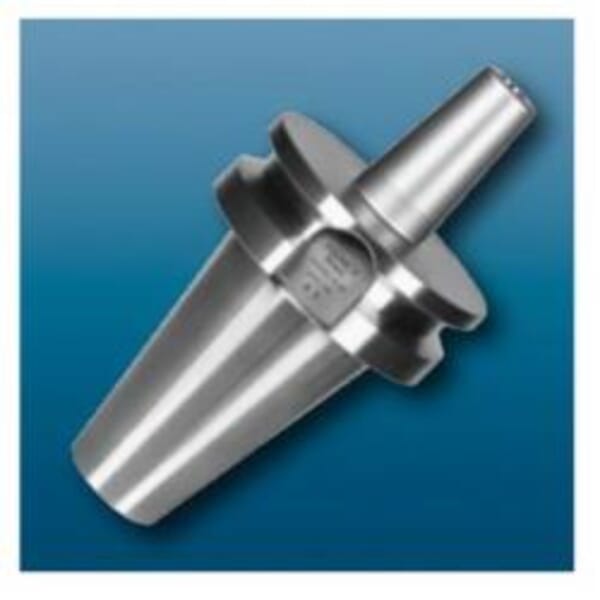

Haimer 50.640.16.00 Standard Basic Short Shrink Fit Chuck, Tapered Shank, BT50 Machine Side, For Use With HSS and Solid Carbide Tools

ManufacturerHaimer

Part #129501345

MFG #50.640.16.00

Haimer Shrink Fit Chuck, Standard Basic Short, System Size Machine Side: BT50, 16 mm Diameter Hole, Tapered Shank, 27 mm Diameter Nose, 100 mm Projection, For Use With: HSS and Solid Carbide Tools, 34 mm Body Diameter Workpiece Side, 50 mm Clamping Length, Yes Through Coolant

$370.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Body Diameter Workpiece Side: 34 mm

Clamping Length: 50 mm

Country of Origin: DE

Hole Diameter: 16 mm

Manufacturer Name: Haimer

Nose Diameter: 27 mm

Projection: 100 mm

Shank Type: Tapered

Suitable For Use With: HSS and Solid Carbide Tools

System Size Machine Side: BT50

Through Coolant (Yes/No): Yes

Type: Standard Basic Short

Back-Up Screw

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form AD
Heat resistant hot working steel
Hardened 54-2 HRC
H6 shank tolerance

JIS B 6339
