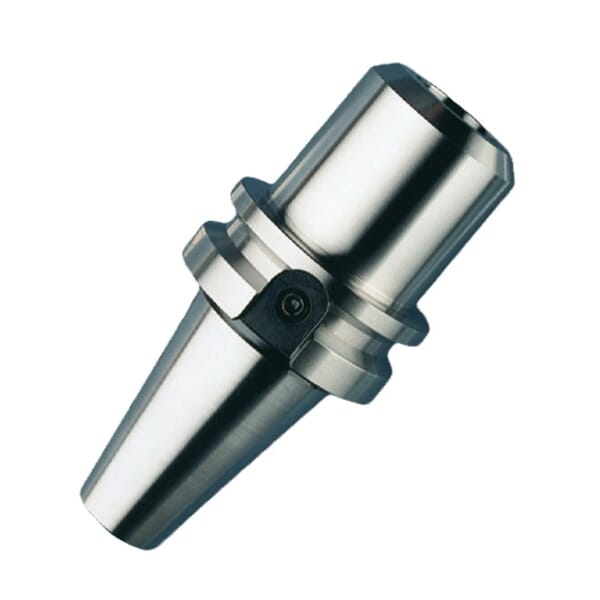

Haimer 50.620.02 High Precision Short Collet Chuck, Tapered Shank, HG02 Collet System, HG02 Chuck
ManufacturerHaimer
Part #129501317
MFG #50.620.02
UPC #4034221016645
Haimer Collet Chuck, High Precision Short, 35 mm Nose Dia, 70 mm Head Length/Projection, HG02 Collet System, Tapered Shank, HG02 Chuck, BT50 Taper, Yes Through Coolant (Yes/No)
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Haimer
Chuck Size:Â HG02
Collet System:Â HG02
Head Length/Projection:Â 70 mm
Nose Diameter:Â 35 mm
Shank Type:Â Tapered
Taper Size:Â BT50
Through Coolant (Yes/No):Â Yes
Type:Â High Precision Short
Clamping Screw and Pull Out Hook
Precision AT3 tolerance shank
Balanced to G2.5 at 22000 rpm
All functional surfaces precision ground
H6 shank tolerance
Coolant supply form ADB
For high precise clamping of tools with cylindrical shank with special collets, shanks with clamping flats and very useful for high speed machining
Clamping Screw and Pull Out Hook
JIS B 6339
Manufacturer Name:Â Haimer
Chuck Size:Â HG02
Collet System:Â HG02
Head Length/Projection:Â 70 mm
Nose Diameter:Â 35 mm
Shank Type:Â Tapered
Taper Size:Â BT50
Through Coolant (Yes/No):Â Yes
Type:Â High Precision Short
Clamping Screw and Pull Out Hook
Precision AT3 tolerance shank
Balanced to G2.5 at 22000 rpm
All functional surfaces precision ground
H6 shank tolerance
Coolant supply form ADB
For high precise clamping of tools with cylindrical shank with special collets, shanks with clamping flats and very useful for high speed machining
Clamping Screw and Pull Out Hook
JIS B 6339
