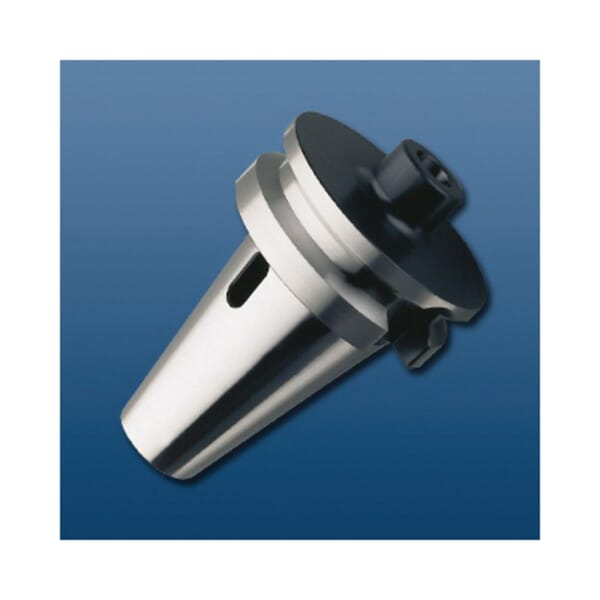

Haimer 50.580.02 Short Taper Adapter, #2 MT Dia Adapter/Shank, Tapered Shank, BT50 Modular Connection, #2 MT Taper, 32 mm Dia Nose, 60 mm Projection

ManufacturerHaimer

Part #129501313

MFG #50.580.02

UPC #4034221016591

Haimer Taper Adapter, Short, BT50 Modular Connection, #2 MT Diameter Adapter/Shank, Tapered Shank, #2 MT Taper, 32 mm Body Diameter Workpiece Side, 32 mm Diameter Nose, 60 mm Projection, System Size Machine Side: BT50

$410.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Adapter/Shank Diameter: #2 MT

Body Diameter Workpiece Side: 32 mm

Modular Connection Size: BT50

Nose Diameter: 32 mm

Projection: 60 mm

Shank Type: Tapered

System Size Machine Side: BT50

Taper Size: #2 MT

Type: Short

AT3 taper tolerance
Balanced to G6.3 at 8000 rpm
All functional surfaces precision ground
For holding tools with morse tapers with tang according to DIN 228-11 form B

JIS B 6339

For holding tools with morse taper with tang
