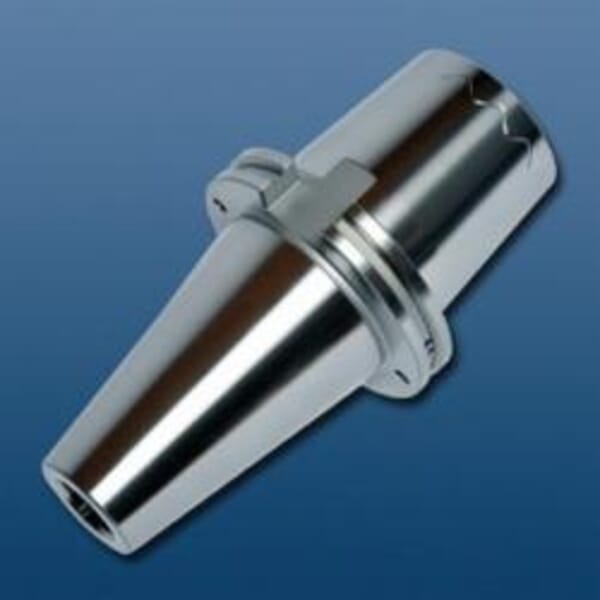

Haimer 50.440.16.6 Heavy Duty Short Shrink Fit Chuck, Tapered Shank, SK50 Machine Side, For Use With HSS and Solid Carbide Tools
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Haimer 50.440.16.6 Heavy Duty Short Shrink Fit Chuck, Tapered Shank, SK50 Machine Side, For Use With HSS and Solid Carbide Tools
ManufacturerHaimer
Part #129501121
MFG #50.440.16.6
UPC #4034221067036
Haimer Shrink Fit Chuck, Heavy Duty Short, System Size Machine Side: SK50, 16 mm Diameter Hole, Tapered Shank, 46 mm Diameter Nose, 80 mm Projection, For Use With: HSS and Solid Carbide Tools, 50 mm Clamping Length, Yes Through Coolant
$ / EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name: Haimer
Clamping Length: 50 mm
Hole Diameter: 16 mm
Nose Diameter: 46 mm
Projection: 80 mm
Shank Type: Tapered
Suitable For Use With: HSS and Solid Carbide Tools
System Size Machine Side: SK50
Through Coolant (Yes/No): Yes
Type: Heavy Duty Short
Precision AT3 Tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest Possible Clamping Force
Less than 3 micron T.I.R
Smooth clamping of the tool shank
No deformation at the tool shank after shrink process
3 µm high runout accuracy
Reinforced outer contour
With dirt groove in the clamping bore
With threaded holes in order to balance with balancing screws
Cool jet bores that can be sealed included
Cooling with cool flash for an extra charge
Reinforced wall thickness at the clamping range
Extremely rigid outer geometry
Dirt groove in the clamping bore for safe clamping force
