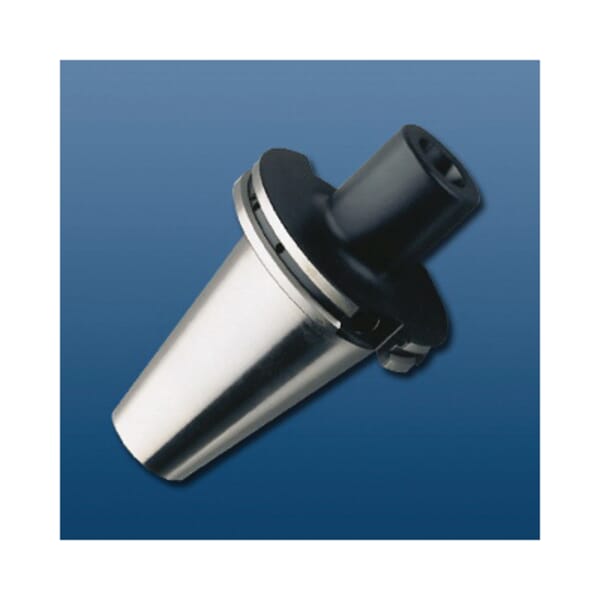

Haimer 50.430.03 Short Taper Adapter, #3 MT Dia Adapter/Shank, Tapered Shank, SK50 Modular Connection, #3 MT Taper, 40 mm Dia Nose, 65 mm Projection
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Haimer 50.430.03 Short Taper Adapter, #3 MT Dia Adapter/Shank, Tapered Shank, SK50 Modular Connection, #3 MT Taper, 40 mm Dia Nose, 65 mm Projection
ManufacturerHaimer
Part #129501093
MFG #50.430.03
UPC #4034221006301
Haimer Taper Adapter, Short, SK50 Modular Connection Size, #3 MT, Tapered Shank, #3 MT Taper, 40 mm Body Dia Workpiece Side, 40 mm Nose Dia, 65 mm Projection, System Size Machine Side: SK50
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Haimer
Adapter/Shank Diameter:Â #3 MT
Body Diameter Workpiece Side:Â 40 mm
Modular Connection Size:Â SK50
Nose Diameter:Â 40 mm
Projection:Â 65 mm
Shank Type:Â Tapered
System Size Machine Side:Â SK50
Taper Size:Â #3 MT
Type:Â Short
Tightening Bolt
AT3 taper tolerance
Balanced to G6.3 at 8000 rpm
All functional surfaces precision ground
For clamping tools with morse taper with drawbar thread according to DIN 228-1 form A
Tightening Bolt
DIN 69871
For clamping tools with morse taper with drawbar thread
Manufacturer Name:Â Haimer
Adapter/Shank Diameter:Â #3 MT
Body Diameter Workpiece Side:Â 40 mm
Modular Connection Size:Â SK50
Nose Diameter:Â 40 mm
Projection:Â 65 mm
Shank Type:Â Tapered
System Size Machine Side:Â SK50
Taper Size:Â #3 MT
Type:Â Short
Tightening Bolt
AT3 taper tolerance
Balanced to G6.3 at 8000 rpm
All functional surfaces precision ground
For clamping tools with morse taper with drawbar thread according to DIN 228-1 form A
Tightening Bolt
DIN 69871
For clamping tools with morse taper with drawbar thread
