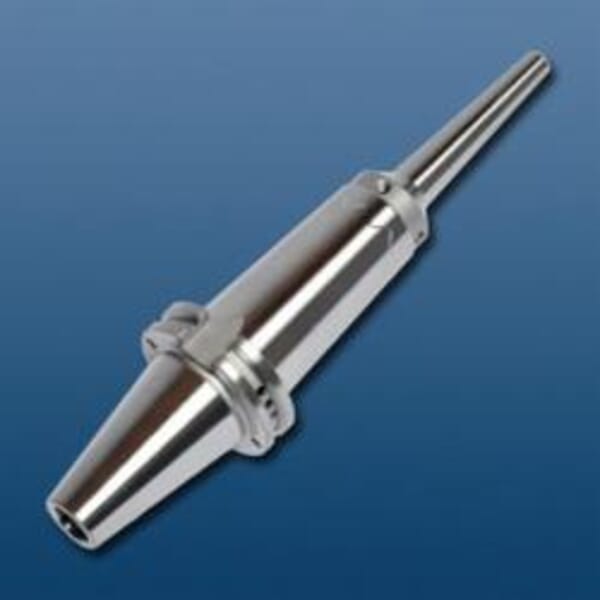

Haimer 40.486.10.8 Power Mini Shrink Fit Chuck, Tapered Shank, SK40 Machine Side, For Use With HSS, Solid Carbide Tools and All Inductive Shrink Fit Units

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Haimer

Haimer 40.486.10.8 Power Mini Shrink Fit Chuck, Tapered Shank, SK40 Machine Side, For Use With HSS, Solid Carbide Tools and All Inductive Shrink Fit Units

ManufacturerHaimer

Part #129500488

MFG #40.486.10.8

UPC #4034221064516

Haimer Power Mini Shrink Fit Chuck, System Size Machine Side: SK40, 10 mm Diameter Hole, Tapered Shank, 16 mm Diameter Nose, 200 mm Projection, For Use With: HSS, Solid Carbide Tools and All Inductive Shrink Fit Units, 80 mm Clamping Length, Yes Through Coolant

$593.00

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: Haimer

Clamping Length: 80 mm

Hole Diameter: 10 mm

Nose Diameter: 16 mm

Projection: 200 mm

Shank Type: Tapered

Suitable For Use With: HSS, Solid Carbide Tools and All Inductive Shrink Fit Units

System Size Machine Side: SK40

Through Coolant (Yes/No): Yes

Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form adb
3 deg slope at the top
H6 shank tolerance
With threaded holes in order to balance with balancing screws

For machining and jobs very difficult to reach

DIN 69871
