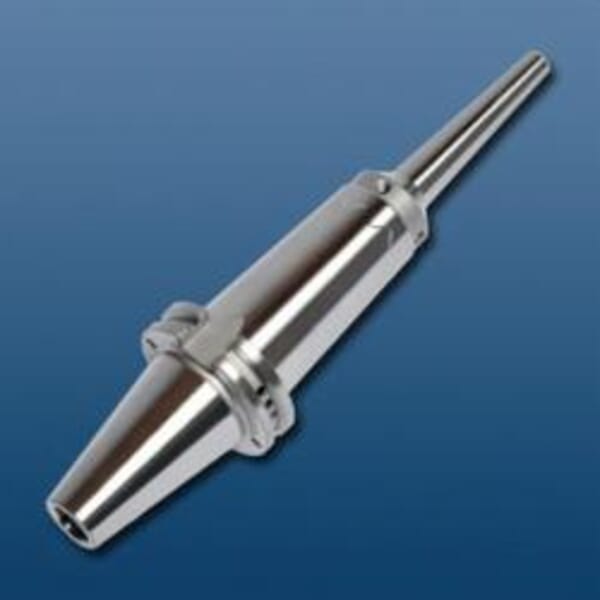

Haimer 40.474.12.8 Extra Slim Power Mini Shrink Fit Chuck, Tapered Shank, SK40 Machine Side, For Use With HSS, Solid Carbide Tools and All Inductive Shrink Fit Units
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Haimer 40.474.12.8 Extra Slim Power Mini Shrink Fit Chuck, Tapered Shank, SK40 Machine Side, For Use With HSS, Solid Carbide Tools and All Inductive Shrink Fit Units
ManufacturerHaimer
Part #129500459
MFG #40.474.12.8
UPC #4034221064226
Haimer Power Mini Shrink Fit Chuck, Extra Slim, System Size Machine Side: SK40, 12 mm Hole Dia, Tapered Shank, 15 mm Nose Dia, 130 mm Projection, For Use With: HSS, Solid Carbide Tools and All Inductive Shrink Fit Units, 50 mm Clamping Length, Through Coolant: Yes
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â Haimer
Clamping Length:Â 50 mm
Hole Diameter:Â 12 mm
Nose Diameter:Â 15 mm
Projection:Â 130 mm
Shank Type:Â Tapered
Suitable For Use With:Â HSS, Solid Carbide Tools and All Inductive Shrink Fit Units
System Size Machine Side:Â SK40
Through Coolant (Yes/No):Â Yes
Type:Â Extra Slim
Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form adb
3 deg slope at the top
H6 shank tolerance
With threaded holes in order to balance with balancing screws
For fine machining and jobs very difficult to reach
DIN 69871
Manufacturer Name:Â Haimer
Clamping Length:Â 50 mm
Hole Diameter:Â 12 mm
Nose Diameter:Â 15 mm
Projection:Â 130 mm
Shank Type:Â Tapered
Suitable For Use With:Â HSS, Solid Carbide Tools and All Inductive Shrink Fit Units
System Size Machine Side:Â SK40
Through Coolant (Yes/No):Â Yes
Type:Â Extra Slim
Precision AT3 tolerance shank
Balanced to G2.5 at 25000 rpm or U Less than 1 gmm
Highest possible clamping force
Less than 3 micron T.I.R
All functional surfaces fine machined
Coolant supply form adb
3 deg slope at the top
H6 shank tolerance
With threaded holes in order to balance with balancing screws
For fine machining and jobs very difficult to reach
DIN 69871
