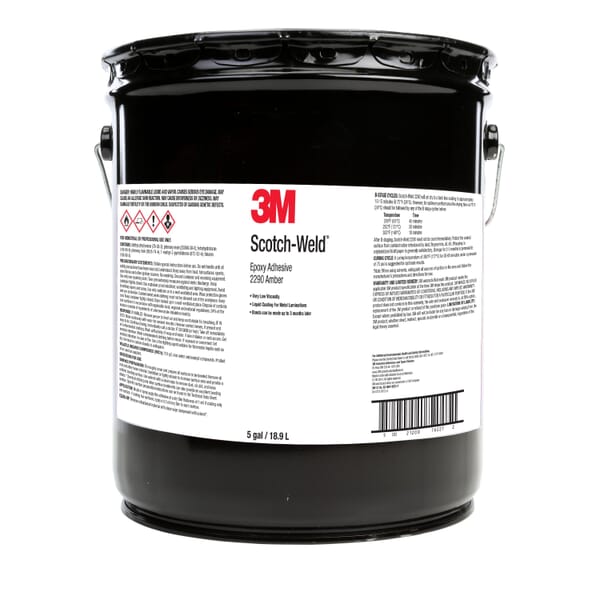

Name: Scotch-Weld 7100144895 2290 Epoxy Adhesive, 5 gal Drum, Amber, 3 to 6 min Curing
Brand: 3M
SKU: 7076897
Availability: OutOfStock

3M

Scotch-Weld 7100144895 2290 Epoxy Adhesive, 5 gal Drum, Amber, 3 to 6 min Curing

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

3M

Scotch-Weld 7100144895 2290 Epoxy Adhesive, 5 gal Drum, Amber, 3 to 6 min Curing

ManufacturerScotch-Weld

Part #120076227

MFG #7100144895

UPC #021200762277

Scotch-Weld, 7100144895, Epoxy Adhesive, Series: 2290, Drum Container, 5 gal Container, Composition: Solvent Based, 40 to 60 min Functional Cure, 3 to 6 min Curing, Amber, 35 to 177 deg F

$ / GL

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: 3M

Base Type: Epoxy

Color: Amber, Clear/Light Yellow

Composition: Methyl Ethyl Ketone, Tetrahydrofuran, Phenoxy Resin, 1-Methyl-2-Pyrrolidinone, Toluene

Container Size: 5 gal

Container Type: Drum, Pail

Country of Origin: US

Curing Time: 3 to 6 min, 30 to 60 min at 350 deg F

For Use On: Metal

Functional Cure: 40 to 60 min, 45 min

Manufacturer Name: 3M

Series: 2290

Temperature Range: 35 to 177 deg F, 72 deg F

Type: 1-Part

VOC Content: 701 g/L

Offers exceptionally high shear and peel strength
Solvent based low viscosity coating formulation
Dries to a tack-free film which allows bonds to be made up to 3 months later for B-staging and multi-stage processes
Excellent wetting during cure requires only coating a single surface

OSHA 29 CFR 1910.1200

3M Scotch-Weld Epoxy Adhesive 2290 is a solvent-based, low viscosity amber tinted thermosetting epoxy adhesive requiring heat cure. It is designed for metal to metal coating and subsequent bonding: for example, in motor lamination and wire winding.

Technical Bulletin

Instruction/Installation Manual

Manufacturer Name: 3M

Base Type: Epoxy

Color: Amber, Clear/Light Yellow

Composition: Methyl Ethyl Ketone, Tetrahydrofuran, Phenoxy Resin, 1-Methyl-2-Pyrrolidinone, Toluene

Container Size: 5 gal

Container Type: Drum, Pail

Country of Origin: US

Curing Time: 3 to 6 min, 30 to 60 min at 350 deg F

For Use On: Metal

Functional Cure: 40 to 60 min, 45 min

Manufacturer Name: 3M

Series: 2290

Temperature Range: 35 to 177 deg F, 72 deg F

Type: 1-Part

VOC Content: 701 g/L

Offers exceptionally high shear and peel strength
Solvent based low viscosity coating formulation
Dries to a tack-free film which allows bonds to be made up to 3 months later for B-staging and multi-stage processes
Excellent wetting during cure requires only coating a single surface

OSHA 29 CFR 1910.1200

3M Scotch-Weld Epoxy Adhesive 2290 is a solvent-based, low viscosity amber tinted thermosetting epoxy adhesive requiring heat cure. It is designed for metal to metal coating and subsequent bonding: for example, in motor lamination and wire winding.

Technical Bulletin

Instruction/Installation Manual
