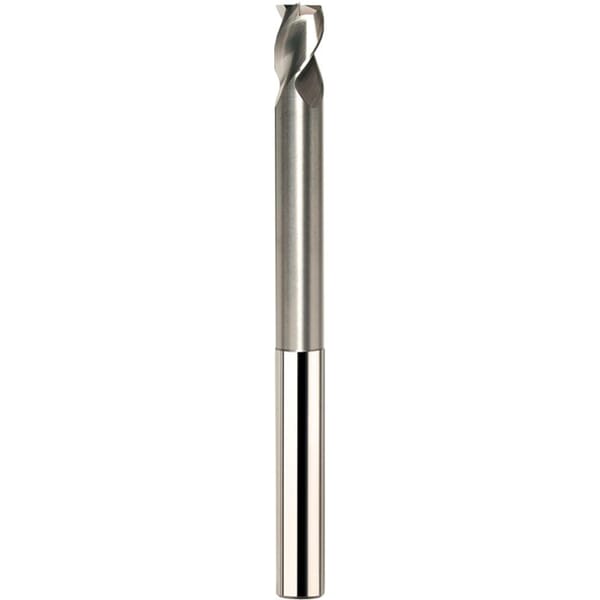

Name: SGS 44800 S-Carb 43MLC Center Cutting High Performance Long Reach Neck Positive Rake Single End Mill, 10 mm Dia Cutter, 1.5 mm Corner Radius, 14 mm Length of Cut, 3 Flutes, 10 mm Dia Shank, 100 mm OAL, TiB2
Brand: KYOCERA SGS Precision tools, Inc.
SKU: 8810529
Availability: OutOfStock

KYOCERA SGS Precision tools, Inc.

SGS 44800 S-Carb 43MLC Center Cutting High Performance Long Reach Neck Positive Rake Single End Mill, 10 mm Dia Cutter, 1.5 mm Corner Radius, 14 mm Length of Cut, 3 Flutes, 10 mm Dia Shank, 100 mm OAL, TiB2

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

Contact Us

KYOCERA SGS Precision tools, Inc.

SGS 44800 S-Carb 43MLC Center Cutting High Performance Long Reach Neck Positive Rake Single End Mill, 10 mm Dia Cutter, 1.5 mm Corner Radius, 14 mm Length of Cut, 3 Flutes, 10 mm Dia Shank, 100 mm OAL, TiB2

ManufacturerSGS

Part #069944800

MFG #44800

UPC #691781448008

SGS End Mill, Center Cutting High Performance Long Reach Neck Positive Rake Single, Series: S-Carb 43MLC, 10 mm Cutter Dia, 1.5 mm Corner Radius, 100 mm Overall Length, 14 mm Length of Cut, 3 Flutes, Right Spiral Flute, 10 mm Shank Dia, Right Hand Cutting, 38 deg Helix Angle, Straight Shank, 3.385 in Shank Length, Solid Carbide, TiB2

$ / EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: KYOCERA SGS Precision tools, Inc.

Corner Radius: 1.5 mm

Country of Origin: US

Cutter Diameter: 10 mm

Cutting Direction: Right Hand

Finish: TiB2, TiB2 Coated

Flute Type: Right Spiral

Helix Angle: 38 deg

Length of Cut: 14 mm

Manufacturer Name: KYOCERA Precision Tools, KYOCERA SGS Precision Tools, KYOCERA SGS Precision tools, Inc.

Material: Solid Carbide

Number of Flutes: 3

Overall Length: 100 mm

Series: S-Carb 43MLC

Shank Diameter: 10 mm

Shank Length: 3.385 in

Shank Type: Straight

Type: Center Cutting High Performance Long Reach Neck Positive Rake Single

Circular land allows for increased control at various speed and feed rates and reduces chatter
Symmetrical end gashing for excellent balance at high speeds and aggressive plunging capability
Open fluting for deep slotting and profiling
Necked design with blended diameter transitions provide clearance to reach
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials <= 150 Bhn (<= 7 HRc)

The original symmetrical flute design features and engineered flute form that provides high performance results through a full range of machining conditions. These tools are designed for aggressive aluminum, non-ferrous, and non-metallic machining requiring a high level of material removal. The S-Carb family encompasses the 2-flute series 47, 3-flute series 43, 3-flute advanced productivity rougher (APR) and 4-flute finisher (APF).
