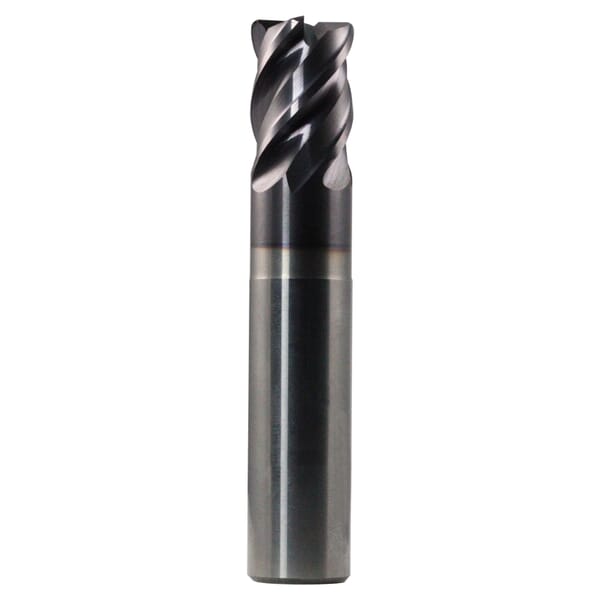

SGS 36793 Z-Carb-MD ZD1CR Center Cutting High Performance Long Reach Neck Negative Rake Single End End Mill, 3/4 in Dia Cutter, 0.06 in Corner Radius, 15/16 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 5-1/2 in OAL, TX Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

KYOCERA SGS Precision tools, Inc.

SGS 36793 Z-Carb-MD ZD1CR Center Cutting High Performance Long Reach Neck Negative Rake Single End End Mill, 3/4 in Dia Cutter, 0.06 in Corner Radius, 15/16 in Length of Cut, 4 Flutes, 3/4 in Dia Shank, 5-1/2 in OAL, TX Coated

ManufacturerSGS

Part #069936793

MFG #36793

UPC #691781367934

SGS End Mill, Center Cutting High Performance Long Reach Neck Negative Rake Single End, Series: Z-Carb-MD ZD1CR, 3/4 in Diameter Cutter, 0.06 in Corner Radius, 5-1/2 in Overall Length, 15/16 in Length of Cut, 4 Flutes, Right Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 42 to 45 deg Helix Angle, Straight Shank, 4.56 in Shank Length, Solid Carbide, TX Coated

$333.17

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: KYOCERA SGS Precision tools, Inc.

Corner Radius: 0.06 in

Country of Origin: US

Cutter Diameter: 3/4 in

Cutting Direction: Right Hand

Finish: TX Coated

Flute Type: Right Spiral

Helix Angle: 42 to 45 deg

Length of Cut: 15/16 in

Manufacturer Name: KYOCERA Precision Tools, KYOCERA SGS Precision Tools, KYOCERA SGS Precision tools, Inc.

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 5-1/2 in

Series: Z-Carb-MD ZD1CR

Shank Diameter: 3/4 in

Shank Length: 4.56 in

Shank Type: Straight

Type: Center Cutting High Performance Long Reach Neck Negative Rake Single End

The original Z-Carb design with negative rake, heavy core, and higher helix for strength and shearing of hard mold and die materials
Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
Enhanced corner geometry with tight tolerance corner radii

The patented unequal high helix of the Z-Carb-MD reduces damaging harmonics by changing the angle at which each cutting edge enters and exits the material. Combined with unequal flute spacing and a heavy core, this end mill effortlessly machines hardened steels with incredible tool life.
