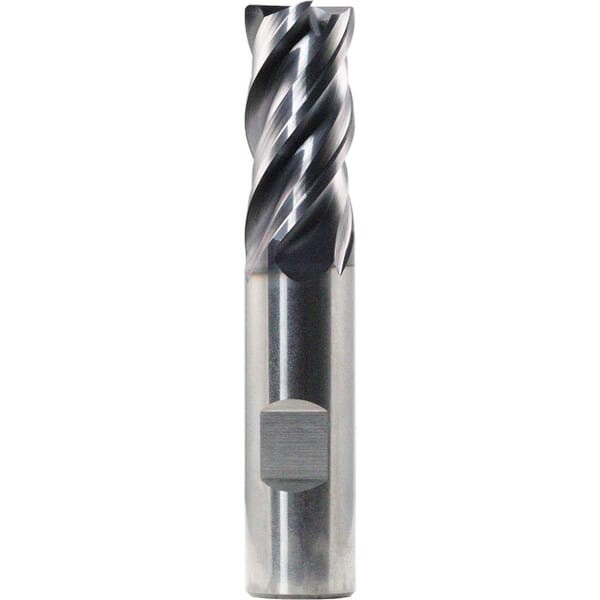

SGS 36617 Z-Carb-HTA ZH1CR Center Cutting High Performance Regular Length Positive Rake Single End Mill, 1/2 in Dia Cutter, 0.03 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, AlTiN Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

KYOCERA SGS Precision tools, Inc.

SGS 36617 Z-Carb-HTA ZH1CR Center Cutting High Performance Regular Length Positive Rake Single End Mill, 1/2 in Dia Cutter, 0.03 in Corner Radius, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, AlTiN Coated

ManufacturerSGS

Part #069936617

MFG #36617

UPC #691781366173

SGS End Mill, Center Cutting High Performance Regular Length Positive Rake Single, Series: Z-Carb-HTA ZH1CR, 1/2 in Cutter Dia, 0.03 in Corner Radius, 3-1/4 in Overall Length, 1-1/4 in Length of Cut, 4 Flutes, Right Spiral Flute, 1/2 in Shank Dia, Right Hand Cutting, 38 to 41 deg Helix Angle, Weldon Flat Shank, 2 in Shank Length, Solid Carbide, AlTiN Coated

$108.95

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: KYOCERA SGS Precision tools, Inc.

Corner Radius: 0.03 in

Country of Origin: US

Cutter Diameter: 1/2 in

Cutting Direction: Right Hand

Finish: AlTiN Coated

Flute Type: Right Spiral

Helix Angle: 38 to 41 deg

Length of Cut: 1-1/4 in

Manufacturer Name: KYOCERA Precision Tools, KYOCERA SGS Precision tools, Inc.

Material: Solid Carbide

Number of Flutes: 4

Overall Length: 3-1/4 in

Series: Z-Carb-HTA ZH1CR

Shank Diameter: 1/2 in

Shank Length: 2 in

Shank Type: Weldon Flat

Type: Center Cutting High Performance Regular Length Positive Rake Single

The original Z-Carb design with an enhanced core and higher helix suited for the demands of high temperature alloys
Unequal flute spacing helps to disrupt the rhythmic pattern created by the cutting edge helping to suppress damaging harmonics
Optimal material removal rates through increased feed and depths of cut for difficult to machine materials
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials <= 45 HRc (<= 420 Bhn)

The Z-Carb-HTA features an enhanced high helix design and enhanced core to meet the demands of machining high temperature alloys. The patented unequal helix design changes the angle at which each cutting edge enters the material, and unequal flute spacing helps disrupt the rhythmic pattern created by the cutting edge. These advancements in design eliminate harmful chatter and increase the material removal rate through increased feeds and depths of cut.
