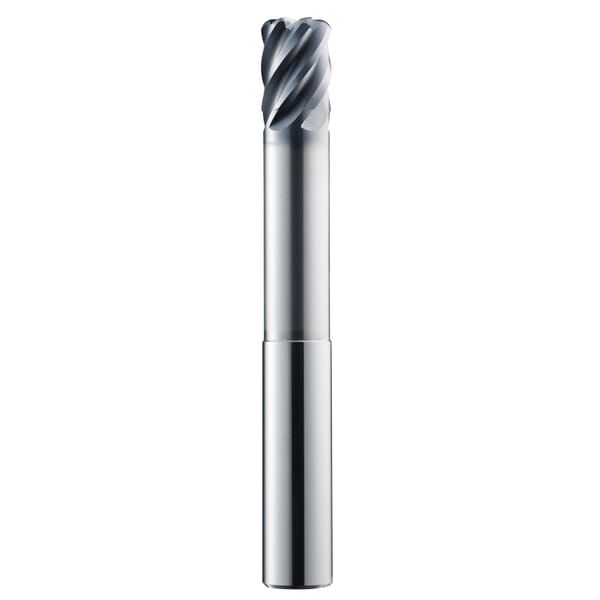

SGS 35134 T-Carb 51LC Center Cutting High Performance Long Reach Neck Positive Rake Single End End Mill, 5/8 in Dia Cutter, 0.09 in Corner Radius, 3/4 in Length of Cut, 6 Flutes, 5/8 in Dia Shank, 5 in OAL, TX Coated

Pricing Notice

Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.

Terms of Sale

Have a Question About a Product?

Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.

KYOCERA SGS Precision tools, Inc.

SGS 35134 T-Carb 51LC Center Cutting High Performance Long Reach Neck Positive Rake Single End End Mill, 5/8 in Dia Cutter, 0.09 in Corner Radius, 3/4 in Length of Cut, 6 Flutes, 5/8 in Dia Shank, 5 in OAL, TX Coated

ManufacturerSGS

Part #069935134

MFG #35134

UPC #691781351346

SGS End Mill, Center Cutting High Performance Long Reach Neck Positive Rake Single End, Series: T-Carb 51LC, 5/8 in Diameter Cutter, 0.09 in Corner Radius, 5 in Overall Length, 3/4 in Length of Cut, 6 Flutes, Right Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 41 deg Helix Angle, Straight Shank, 2-1/2 in Shank Length, Solid Carbide, TX Coated

$294.57

/ EA

QTY

Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.

Manufacturer Name: KYOCERA SGS Precision tools, Inc.

Corner Radius: 0.09 in

Country of Origin: US

Cutter Diameter: 5/8 in

Cutting Direction: Right Hand

Finish: TX Coated

Flute Type: Right Spiral

Helix Angle: 41 deg

Length of Cut: 3/4 in

Manufacturer Name: KYOCERA Precision Tools, KYOCERA SGS Precision Tools, KYOCERA SGS Precision tools, Inc.

Material: Solid Carbide

Number of Flutes: 6

Overall Length: 5 in

Series: T-Carb 51LC

Shank Diameter: 5/8 in

Shank Length: 2-1/2 in

Shank Type: Straight

Type: Center Cutting High Performance Long Reach Neck Positive Rake Single End

Engineered for High Speed Milling using Trochoidal and Peel Milling techniques
Eccentric relief provides superior strength and smoother surface finish
Necked design with blended diameter transitions provide clearance to reach
Enhanced corner geometry with tight tolerance corner radii
Recommended for materials <= 45 HRc (<= 420 Bhn)

The T-Carb lineup features specialized engineering and design to excel at high speed machining. Specifically trochoidal and peel milling, the T-Carb 6-flute design with eccentric relief provides strength and supreme chip control at high speeds and with surprising finish results.
