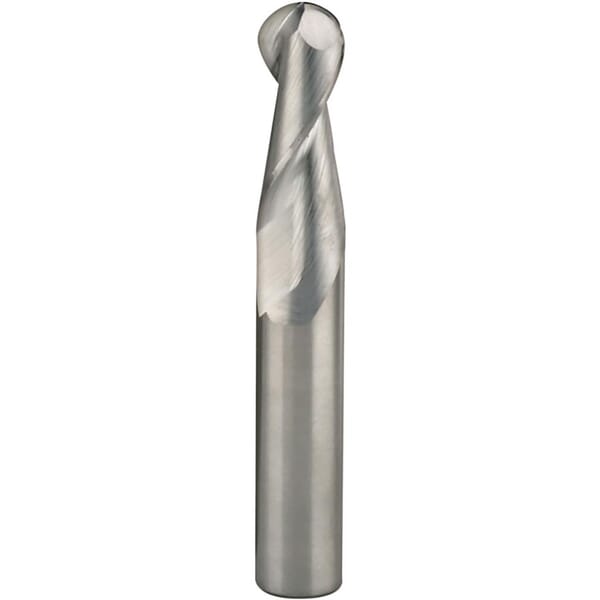

SGS 34636 47B Ball Nose End Fractional High Performance Regular Length High Performance End Mill, 5/8 in Dia Cutter, 1-5/8 in Length of Cut, 2 Flutes, 5/8 in Dia Shank, 3-3/4 in OAL, Uncoated
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
SGS 34636 47B Ball Nose End Fractional High Performance Regular Length High Performance End Mill, 5/8 in Dia Cutter, 1-5/8 in Length of Cut, 2 Flutes, 5/8 in Dia Shank, 3-3/4 in OAL, Uncoated
ManufacturerSGS
Part #069934636
MFG #34636
UPC #691781346366
SGS End Mill, Ball Nose End Fractional High Performance Regular Length, Series: 47B, 5/8 in Diameter Cutter, 3-3/4 in Overall Length, 1-5/8 in Length of Cut, 2 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Straight Shank, 2.13 in Shank Length, Micrograin Solid Carbide, Uncoated Finish
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
Manufacturer Name:Â KYOCERA SGS Precision tools, Inc.
Country of Origin:Â US
Cutter Diameter:Â 5/8 in
Cutting Direction:Â Right Hand
Finish:Â Uncoated
Flute Type:Â Spiral
Helix Angle:Â 35 deg
Length of Cut:Â 1-5/8 in
Manufacturer Name:Â KYOCERA Precision Tools, KYOCERA SGS Precision tools, Inc.
Material:Â Micrograin Solid Carbide
Number of Flutes:Â 2
Overall Length:Â 3-3/4 in
Series:Â 47B
Shank Diameter:Â 5/8 in
Shank Length:Â 2.13 in
Shank Type:Â Straight
Type:Â Ball Nose End Fractional High Performance Regular Length
Circular land reduces edge aggressiveness for varied speed and feed rates
2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
Excellent balance at high speeds and aggressive plunging capability
Recommended for materials <= 150 Bhn (<= 7 HRc)
SGS End Mill, Ball Nose End Fractional High Performance Regular Length, Series: 47B, 5/8 in Diameter Cutter, 3-3/4 in Overall Length, 1-5/8 in Length of Cut, 2 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Straight Shank, 2.13 in Shank Length, Micrograin Solid Carbide, Uncoated Finish
Manufacturer Name:Â KYOCERA SGS Precision tools, Inc.
Country of Origin:Â US
Cutter Diameter:Â 5/8 in
Cutting Direction:Â Right Hand
Finish:Â Uncoated
Flute Type:Â Spiral
Helix Angle:Â 35 deg
Length of Cut:Â 1-5/8 in
Manufacturer Name:Â KYOCERA Precision Tools, KYOCERA SGS Precision tools, Inc.
Material:Â Micrograin Solid Carbide
Number of Flutes:Â 2
Overall Length:Â 3-3/4 in
Series:Â 47B
Shank Diameter:Â 5/8 in
Shank Length:Â 2.13 in
Shank Type:Â Straight
Type:Â Ball Nose End Fractional High Performance Regular Length
Circular land reduces edge aggressiveness for varied speed and feed rates
2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
Excellent balance at high speeds and aggressive plunging capability
Recommended for materials <= 150 Bhn (<= 7 HRc)
SGS End Mill, Ball Nose End Fractional High Performance Regular Length, Series: 47B, 5/8 in Diameter Cutter, 3-3/4 in Overall Length, 1-5/8 in Length of Cut, 2 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Straight Shank, 2.13 in Shank Length, Micrograin Solid Carbide, Uncoated Finish
