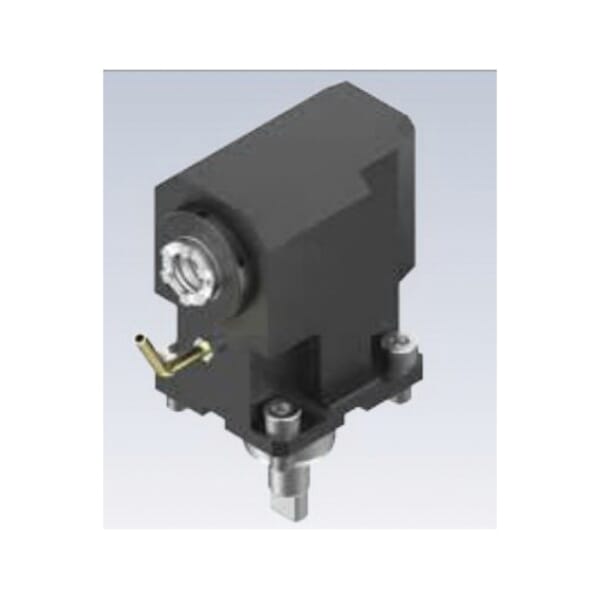

Lyndex-Nikken MNZ20-ER25Z-ICE-12K Mori Seiki NZ20 90 deg Axial Z-Axis Face Drill/Milling Unit With Internal Coolant, ER25 Workpiece Side
Pricing Notice
Due to evolving trade policies, product prices may be subject to change. For details, please refer to our Terms of Sale. We remain committed to offering competitive pricing and exceptional service.
Terms of SaleHave a Question About a Product?
Our team is here to answer all your questions and provide the detailed information and support you need to make product decisions.
Contact UsLyndex-Nikken MNZ20-ER25Z-ICE-12K Mori Seiki NZ20 90 deg Axial Z-Axis Face Drill/Milling Unit With Internal Coolant, ER25 Workpiece Side
ManufacturerLyndex-Nikken
Part #048328268
MFG #MNZ20-ER25Z-ICE-12K
Lyndex-Nikken Face Drill/Milling Unit, 90 deg Axial Z-Axis, Series: Mori Seiki NZ20, 3.346 in Gage Length, 2.165 in Centerline Height, ER25 System Size Workpiece Side, Nickel Chrome Molybdenum Alloy
$Â /Â EA
Knowledgeable Product TeamBenefit from our experienced team, ready to assist you with expert product knowledge and ensure a seamless shopping experience.
- Manufacturer Name:Â Lyndex-NikkenCenterline Height:Â 2.165 inCountry of Origin:Â DEGage Length:Â 3.346 inManufacturer Name:Â Lyndex-NikkenMaterial:Â Nickel Chrome Molybdenum AlloySeries:Â Mori Seiki NZ20System Size Workpiece Side:Â ER25Type:Â 90 deg Axial Z-Axis
- Labyrinth seals - enhances the longevity and reduces maintenance by preventing contaminates from entering into the live tool assembly
- Ground eccentric nut - allows for fine accuracy and strong tool shank gripping capacity by preventing collet twisting or rocking
- Run out - guarantee of under 5 u repeatability at collet nose
- Gear pairing - hand matched for each pair to minimize backlash
- Gear design - custom ground spiral bevel gear tooth design maximizes drive torque output and reduces tooth root stress allowing for more tool longevity
- Gear equilibrium - placement of bearings balance torque stress evenly through input/output shafts
- Tool body - manufactured from the highest tensile and compression nickel chrome molybdenum alloys
- Drive shafts - all features are ground on both the input and output chrome molybdenum drive shafts to assure proper torque transmission and precision concentricity
- Bearing quality - only the highest precision ABEC 7 angular contact bearings are used for smooth and high speed rotation
- Quality control - all live tools go through a vigorous 60-point final inspection to satisfy the highest expectations of live tool performance
- ICE - new design allows for internal coolant type to be run dry continuously
- Metal Working Applications
- Manufacturer Name:Â Lyndex-NikkenCenterline Height:Â 2.165 inCountry of Origin:Â DEGage Length:Â 3.346 inManufacturer Name:Â Lyndex-NikkenMaterial:Â Nickel Chrome Molybdenum AlloySeries:Â Mori Seiki NZ20System Size Workpiece Side:Â ER25Type:Â 90 deg Axial Z-Axis
- Labyrinth seals - enhances the longevity and reduces maintenance by preventing contaminates from entering into the live tool assembly
- Ground eccentric nut - allows for fine accuracy and strong tool shank gripping capacity by preventing collet twisting or rocking
- Run out - guarantee of under 5 u repeatability at collet nose
- Gear pairing - hand matched for each pair to minimize backlash
- Gear design - custom ground spiral bevel gear tooth design maximizes drive torque output and reduces tooth root stress allowing for more tool longevity
- Gear equilibrium - placement of bearings balance torque stress evenly through input/output shafts
- Tool body - manufactured from the highest tensile and compression nickel chrome molybdenum alloys
- Drive shafts - all features are ground on both the input and output chrome molybdenum drive shafts to assure proper torque transmission and precision concentricity
- Bearing quality - only the highest precision ABEC 7 angular contact bearings are used for smooth and high speed rotation
- Quality control - all live tools go through a vigorous 60-point final inspection to satisfy the highest expectations of live tool performance
- ICE - new design allows for internal coolant type to be run dry continuously
- Metal Working Applications
